ADL300-EYZ 3-Phase Prepaid Energy Meter

ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .It also supports RF card and remote recharge, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

  • Fast And Safe Logistics
  • Sample Available

ADL300-EYz

    • AC 3×220/380V
    • 1(6)A,10(80)A
    • Prepaid mode
    • Alarm for dump energy
    • LCD display
    • Historical records
    • kWh Class 0.5S
    • DIN 35 mm

Functions

Accuracy: kWh Class 0.5s

Frequency: 50/60HZ(Optional), Range:45~65HZ

Auxiliary power supply(self supply): 220Vac(L-N),range:154~264Vac

Pulse output: Pulse output kWh

Consumption<4VA(Each phase)

Installation: DIN 35mm

Dimension(L*W*H):144*88*70mm

Active pulse:
Constant: 6400imp/kWh,400imp/kWh

Clock: ≤0.5s/d

Starting current:
Connect directly:0.04A,connect via CT:0.002A

Technical parameters

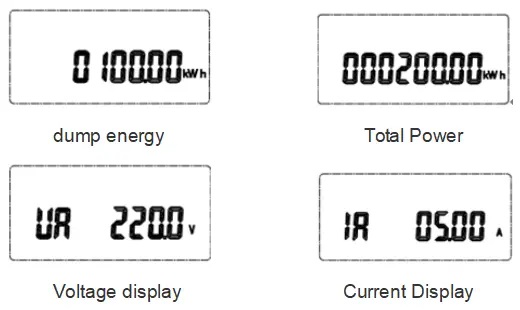

LCD Display

Front Panel

① Brand
② Infrared Interface
③ Pluse Output light
④ Switch opening light
⑤ Switch closing light
⑥ Button

Wiring

Network

Package
