ARTU100 Series Remote Terminal Units

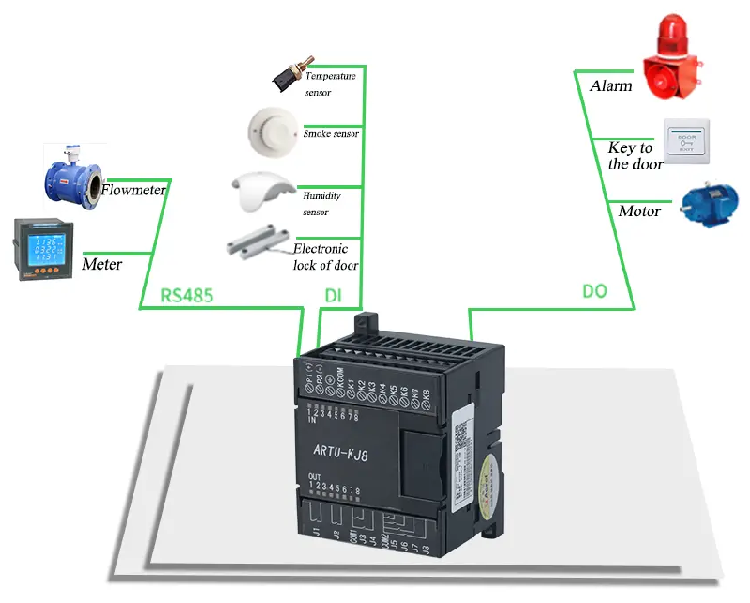

ARTU100 series remote communication& control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

ARTU100

ARTU100-KJ8

RS485 (MODBUS -RTU)

Channel state indicator and communication state indicator

24VDC (±10%); 220VAC, allow AC/DC 85~265V

2-way 10-100mbits adaptive Ethernet communication, support IPV4, IPV6.

Functional features

1.2-way 10-100mbits adaptive Ethernet communication, support IPV4, IPV6.

2.Support Web page parameter configuration,UDP broadcast,SNMMP network management,DHCP automatic access IP.

3.It can realize 8-way Sever/Client function,and realize 8-way client connection or 8-way server connection at the same time.

4.8-way RS485 communication, baud rate support 1200-115200 can be set, data bit, check bit, stop bit can be set;each 485 can be connected to 30 meters.

5.The protocol conversion between MODBUS TCP and MODBUS RTU can be realized.

Parameters

PQWER SUPPER	AC/DC 85-265V 、 DC48V
POWER CONSUMPTION	≤9W (excluding modules); ≤15W (including modules, up to 3 modules)
MODEL	ARTU100-K32	32-path DI (active/passive, optional)
	ARTU100-K16	16-path DI (active/passive, optional)
	ARTU100-KJ8	8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A;
COMUMICATION	485 communication	RS485 interface	2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps
OTHER	Dial switch	10 bits
	Indicator light	20 indicator lights

Wiring

SPECIFICATIONS

ARTU100-K16/K32

ARTU100-K8/J8

INDICATOR LIGHT DESCRIPTION

1. POW refers to the power light.
2. COM refers to the communication light.
3. EXT refers to the module communication light.
4. The number refers to the channel number (for example, K16 refers to DI1-DI16), the odd number refers to the red light, and the even number refers to the green light. (See the table below for specific information of indicator lights.)
