BD-AI Single Phase current Transducer

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

  • Fast And Safe Logistics
  • Sample Available

BD-AI

    • AC current
    • Overload: 1.2 times of rated value
    • Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

Parameter

Features



2000V
High Reliability
>300Ω
Isolation withstand Voltage
Strong Anti-interference
Load bearing capacity

The input and output withstand voltage

can reach 2000V

Full analog circuit mode is adopted.

Effectively suppress the interference in the line.

High input impedance

Load resistance range>300Ω

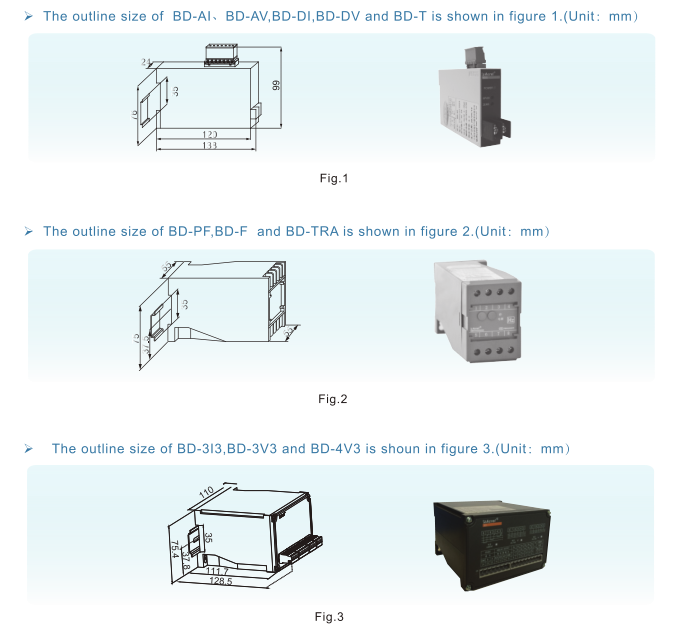

Dimension

Wiring

Application




Date Center
Building
Industrial
Seaport





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

17*15.5*12.5cm

Package Weight(1 PC)

0.25Kg


WHOLE BOX PACKAGE


Package dimensions(10 PCS)

45.5*26*19.5

Package Weight(36 PCS)

3.5kG


PRODUCT HS CODE


9030339000

ATTENTION !

The above packing and weight data are only refer to model BD-AI.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
