Modbus Smart Lighting Switch Driver ASL220-S4-16

ASL220-Sx/16 series of switch driver (hereinafter referred to as driver) is Acre-bus output control module. The product meets the rules of Q31/0114000129C032-2017 ASL220 Intelligent Lighting Control System.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

ASL220-S4/16

AC220V power supply

Comes with RTC clock chip, which can work independently offline and perform timing tasks (including astronomical clock)

Comes with LCD display and button panel, can directly test and set parameters on site

Voltage, current and power monitoring; relay zero-crossing trigger (220Z unique function)

Modbus-RTU protocol

Functional features

1. Switch function

2. Time function, including stair light, flash and delay functions

3. Preset function

4. Scene control

5. Logic function

6. Threshold function

7. Heater control function

Parameters

Wiring

Main Functions

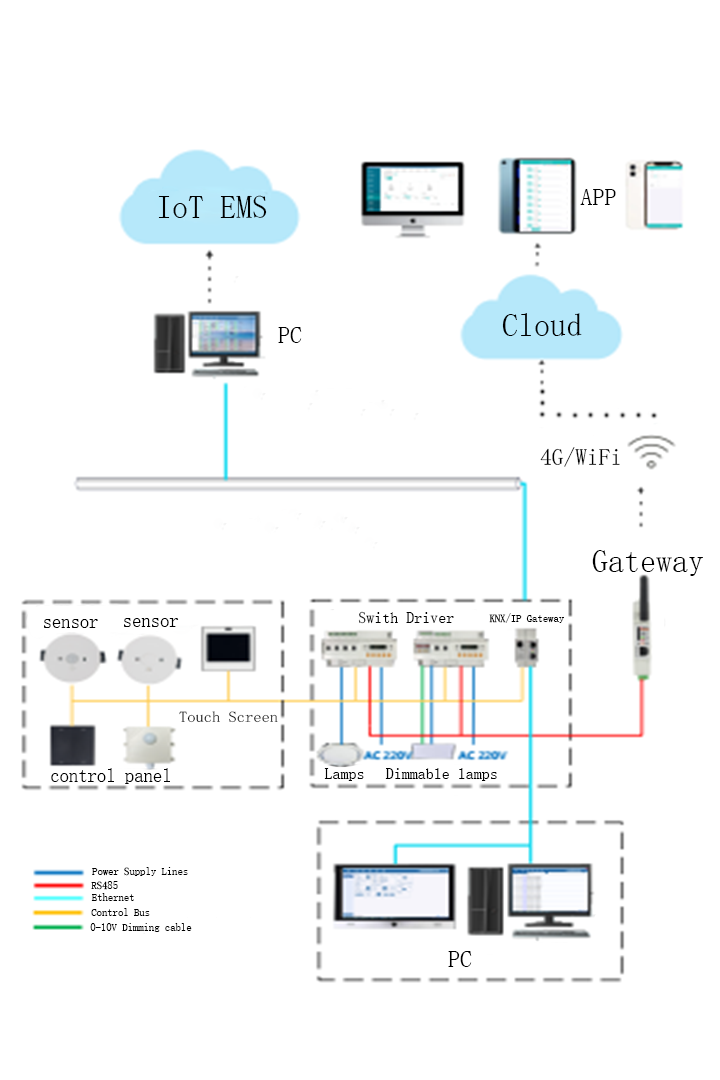

Network

Application

Package

Specifications

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC) 170150130mm	Package Weight(1 PC) 0.3Kg
WHOLE BOX PACKAGE	Package dimensions(36 PCS) 450240250mm	Package Weight(36 PCS) 10.8kG
PRODUCT HS CODE	9025191010
