Hospital Solution

Provide hospital energy digital platform solutions to improve the reliability of hospital power supply and safety of electricity use, reduce the overall energy consumption of the hospital, and provide total energy consumption, energy consumption intensity, and classified sub-item energy consumption data of the hospital in accordance with the standards of the hospital smart management hierarchical evaluation system. Realize the operation and maintenance management of HVAC systems and major energy-consuming equipment.

Application

Medical IT system insulation monitoring device and fault location system is suitable for hospital operating room, ICU (CCU) and other important places, and can provide a safe place for such continuous, reliable power solutions.

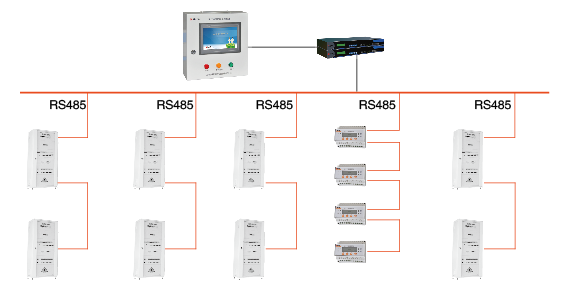

Structure

Main Functions

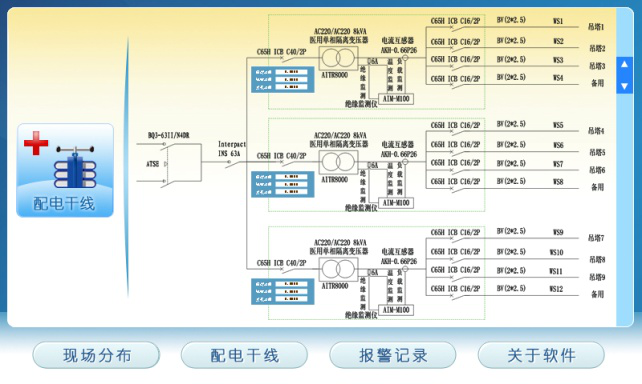

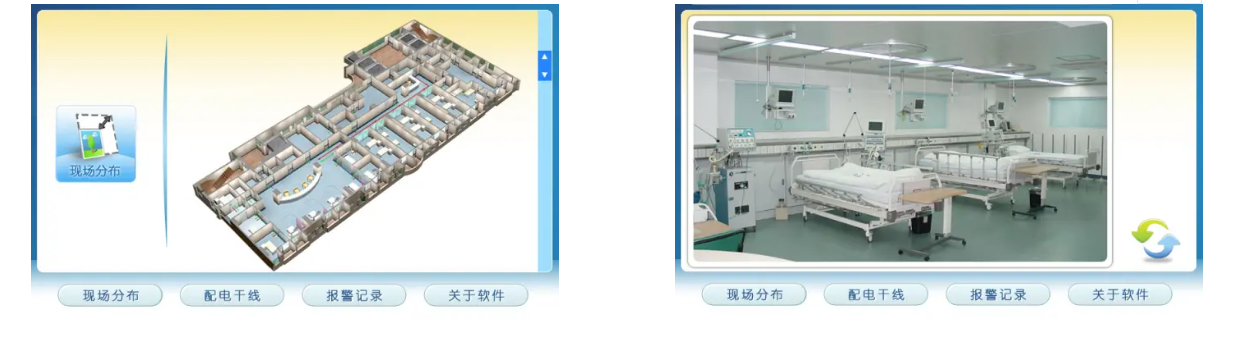

1）Primary connection diagram and field distribution display

2）Real-time data acquisition and display

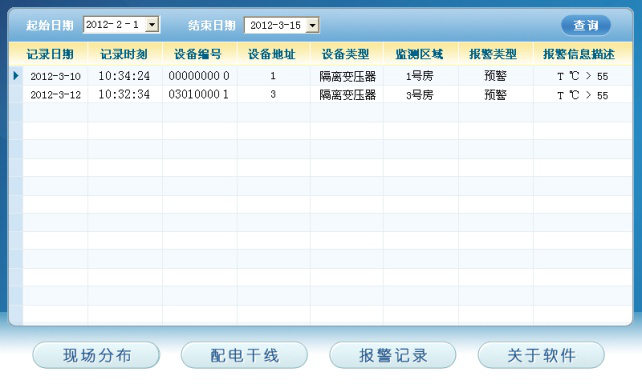

3）Fault Alarm

4）Remote parameter setting and inquiry

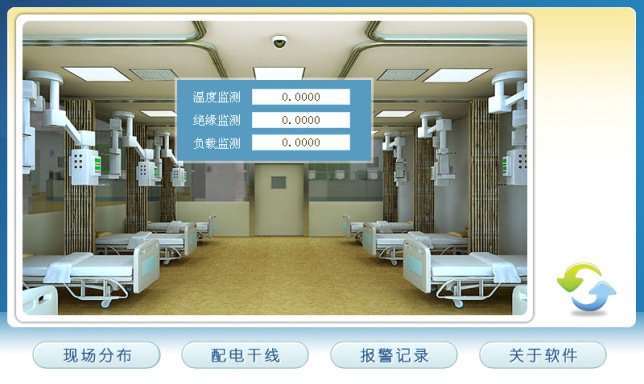

5）Graphic display

Display the insulation status, load status, and the isolation transformer temperature of each set of isolated power systems in graph form.

Product Selection

Product Name	Product Image	Functions
AIM-M200 Medical Intelligent Insulation Monitor		● Insulation monitoring for medical IT systems ● Load and temperature monitoring of isolation transformer ● Device disconnection monitoring ● LED indicators: On, Insulation, Overload, Overtemp ● Alarm relay output ● Test button ● Insulation fault location ● RS485 (MODBUS-RTU) + CAN
AID150 Alarm and Display Device		● Remote monitoring ● LED indicators：On, Insulation, Overload, Overtemp ● Mute button ● Test button ● Auxiliary power supply: DC24V ● RS485(MODBUS-RTU)
ASG150 Signal Generator		● Generating Fault Location Signal ● Detection of L1 and L2 disconnection ● LED indicators: On, Comm, Test ● CAN bus ● Auxiliary power supply: DC24V
ACLP10-24 Auxiliary Power Supply		● Auxiliary power supply to AID series ● AC 220V input, DC 24V output ● Completely Isolated Linear Transformer ● Power-on indicator
AIL150-4/-8 Insulation Fault Locator		● Insulation fault location in AC IT systems ● AIL150-4: 4 measuring channels ● AIL150-8: 8 measuring channels ● LED indicators: On, Comm ● CAN bus ● Auxiliary power supply: DC24V
AKH-0.66P26 Protective Current Sensor		● Matching with AIM-M Series Insulation Monitor ● Maximum Current: 50A ● Transformation ratio: 2000:1
AITR Series Medical isolation transformer		● Isolating transformers for medical IT systems ● Double insulation treatment, Electrostatic shielding layer ● PT100 temperature sensor ● Rated power: 3.15…10KVA ● CE
