ABAT100 Lead Acid Battery Monitoring Device

● Monitoring Capability: One S-module monitors one battery
● Monitoring Scope: 2V, 6V, 12V battery with capacity less than 3000AH
● Single internal resistance: 50～65535uΩ
● Negative temperature: -5℃～+105℃
● Communication Interface: UART port, support MODBUS protocol
● Insulation withstand voltage: 2000VAC
● Battery Type: Lead acid battery

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

Manual- ABAT100 Series Battery Online MonitoringSystem

General

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Parameters

Model	Function Description

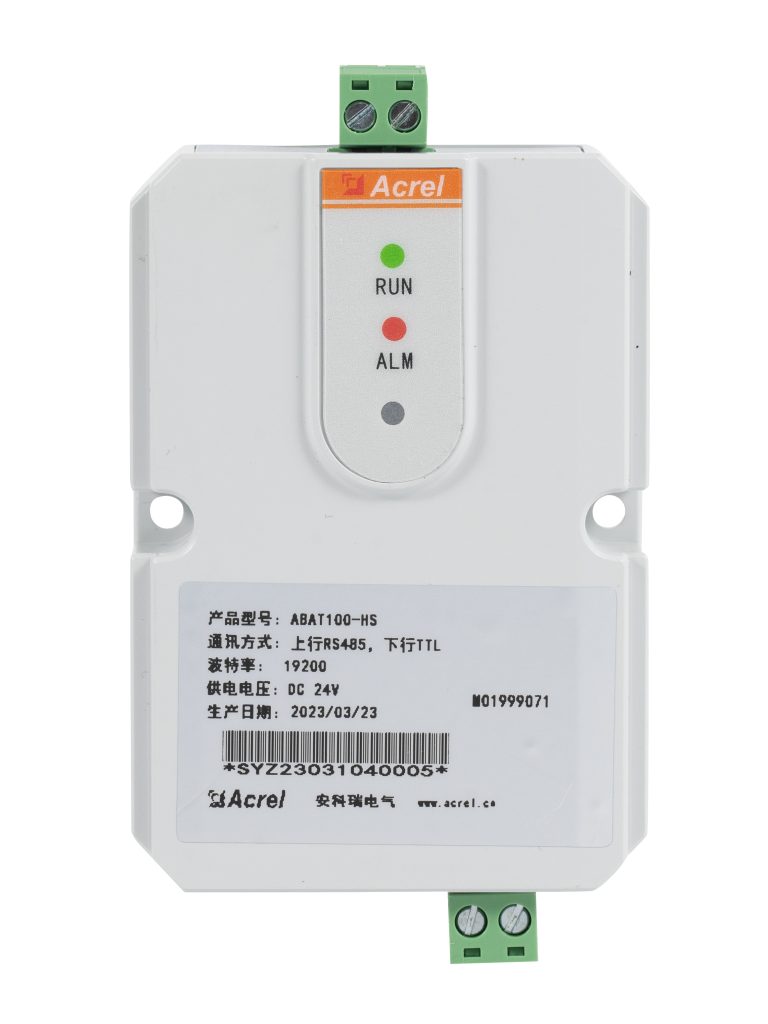

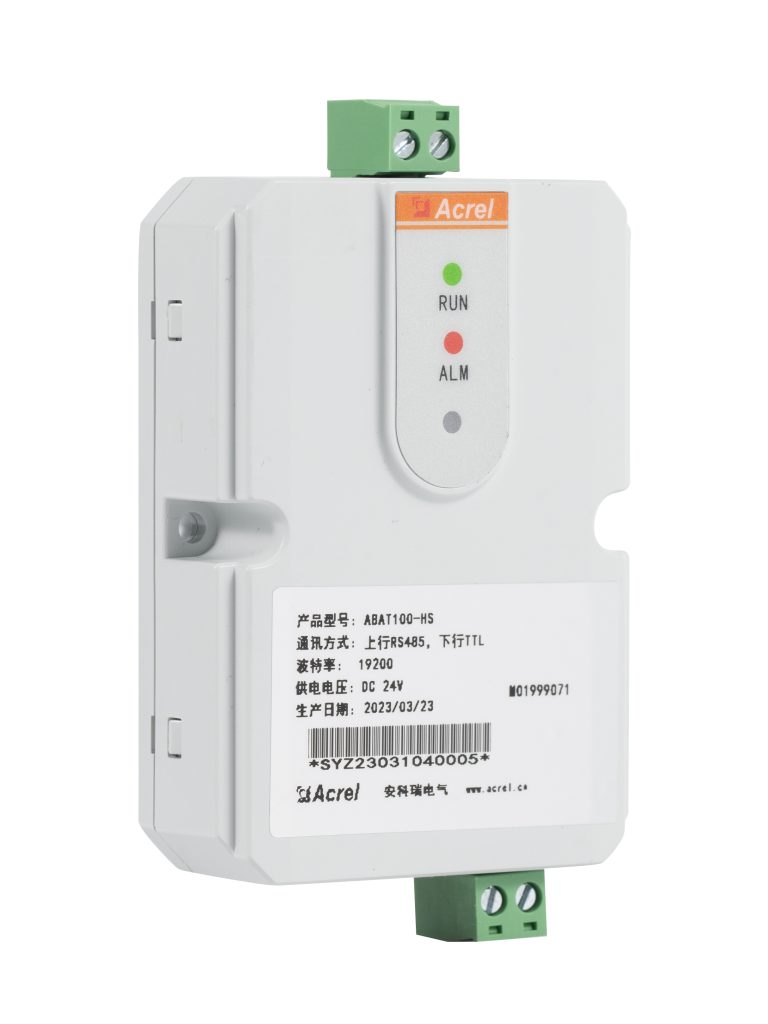

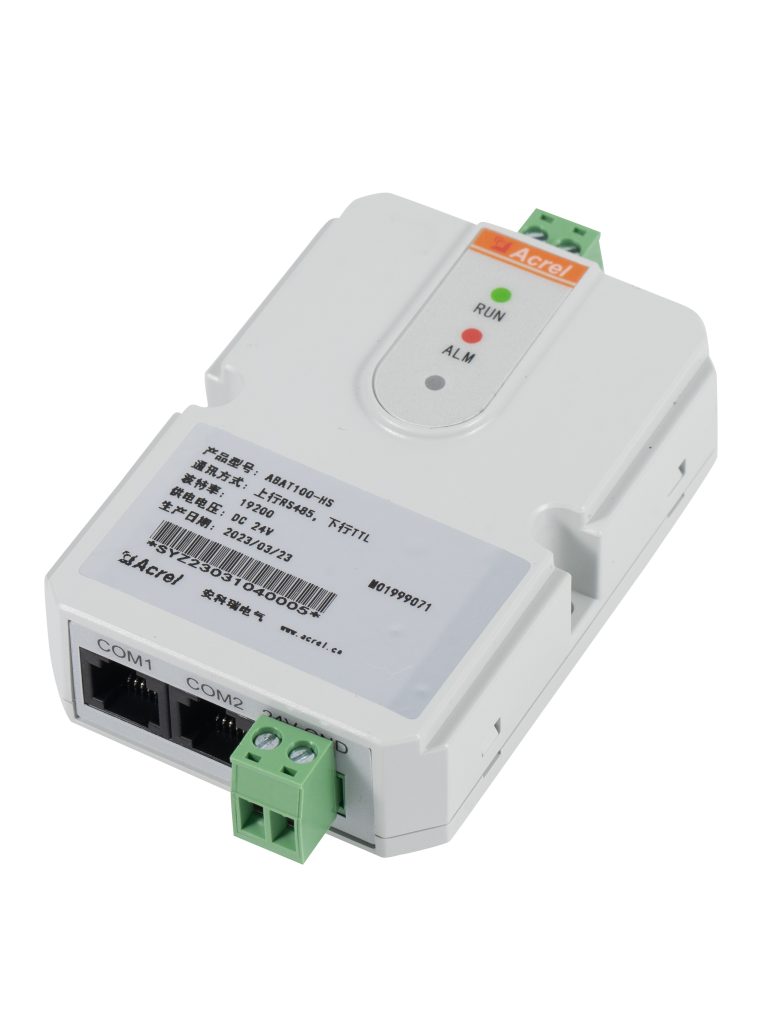

ABAT100-HS	DC24V input, one to manage a group of batteries, up to 120 batteries in a group.

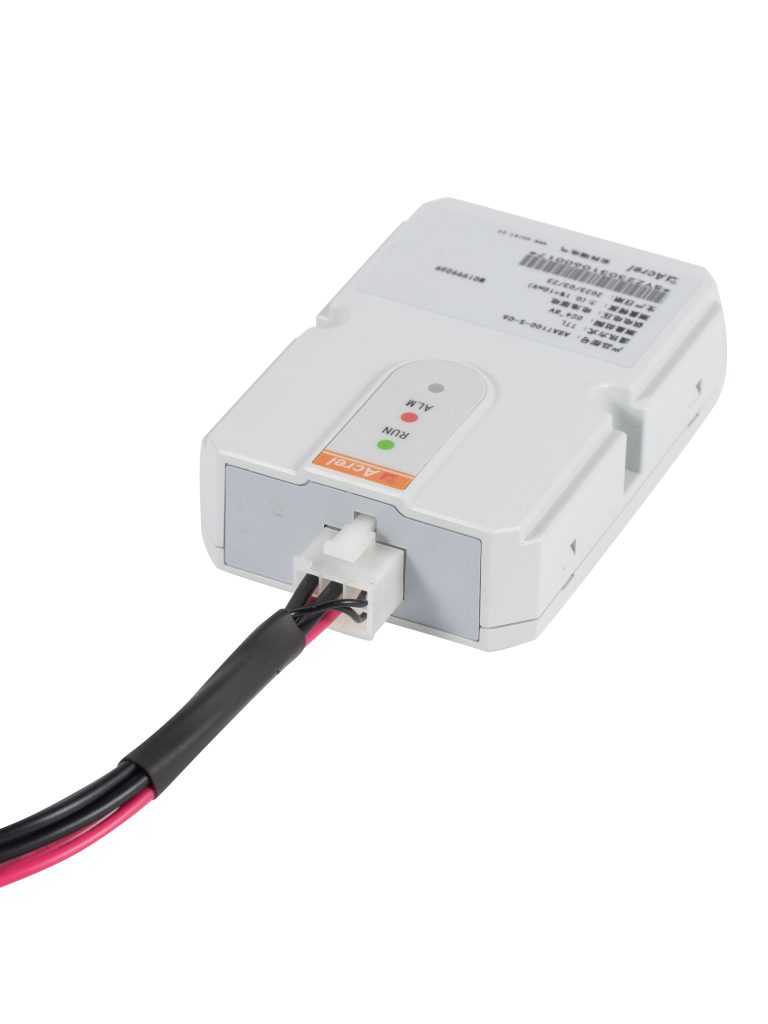

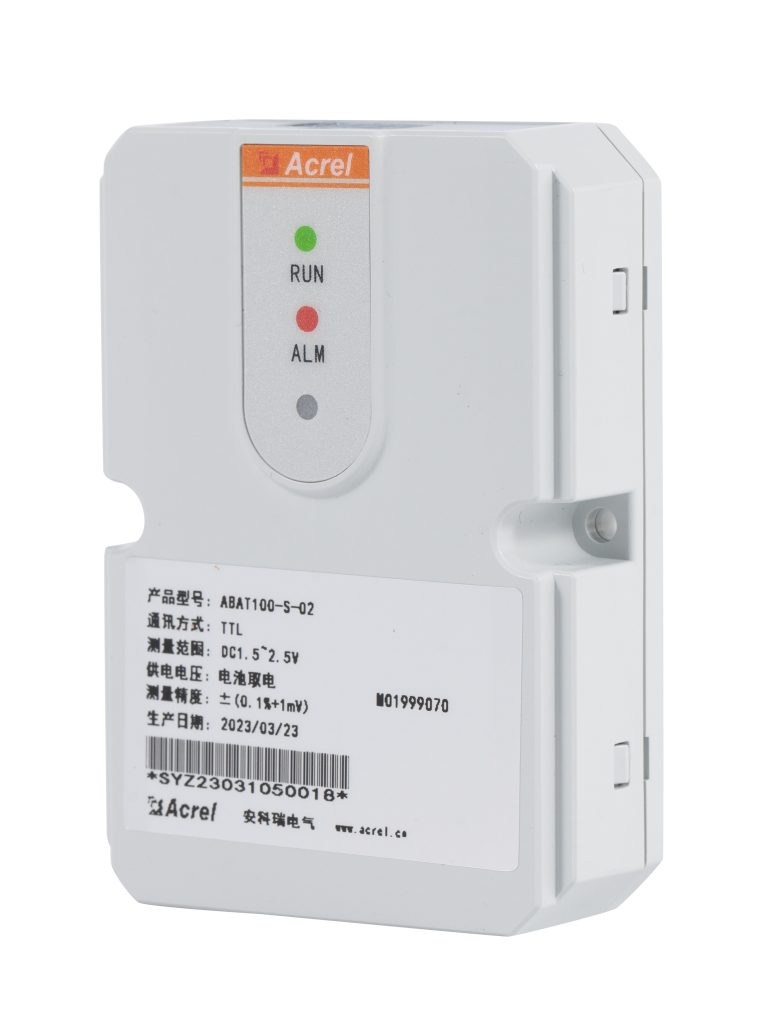

ABAT100-S-02	Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature.
ABAT100-S-06	Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature.
ABAT100-S-12	Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature.

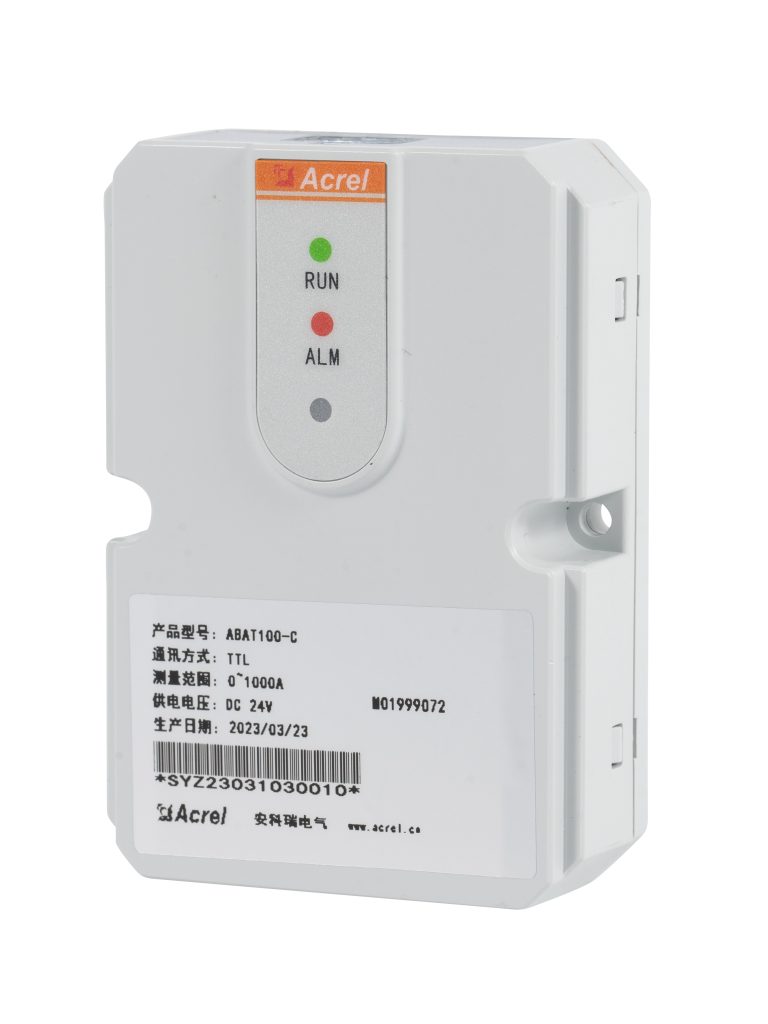

ABAT100-C	Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A.

Dimension

Typical Connection

Photos on Site
