ADF400L Multi Circuits Energy Meter

Function

Energy Metering
●Total active energy, forward and reverse active energy, multi-rate active energy measurement

Multiple Tariff Rate
●Support 4 time zones, 2 time slots, 14 daily time slots, 4 rates

Multi module extend
●12 three-phase or 36 single-phase direct access measurement
●12 three-phase mutual inductor access measurement

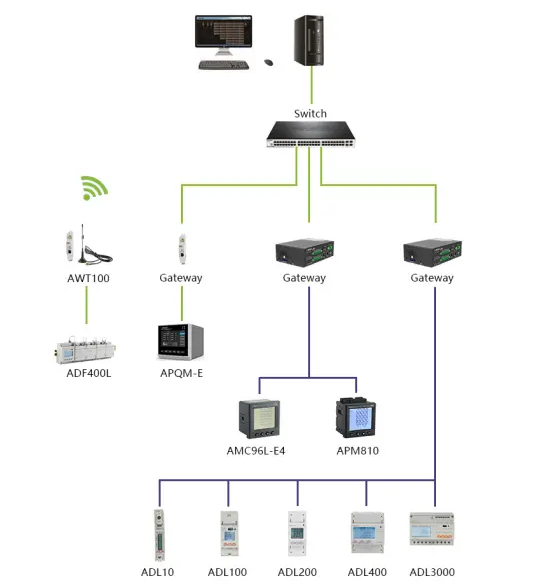

Communication
●Infrared communication, MODBUS-RTU, Modbus-TCP、TCP/IP

Different Modules

Main Module
1. Three-phase 3*220/380V power supply to provide working power for the back-end measurement module;
2. Man-machine interface: LCD and button programming;
3. Infrared communication;
4. RF card swiping (IC function);
5. 2 Channels RS485 network communication (*C function);
6. RS485 communication for No. 3 extended wireless module (RJ45 connection mode );
7. Up to 2DI/2DO (K function);
8. Up to 1 Ethernet communication (CE function);

Transformer Access Measurement Module
1. Two-way three-phase 3*1 (6) A measurement can be realized;
2. 2 active energy pulse output;
3. 2 three-phase working status, pulse and communicationindication;
4. Up to 4DI/4DO function (K function);

Direct Access to The Measurement Module
1. It can realize one-way three-phase 3*10 (80) measurement or three-way single-phase 10 (80) A measurement;
2.1 active energy pulse output;
3. Three-phase working status, pulse and communication status LED indication;
