AKH-0.66/L Leakage Current Transformer

AKH-0.66L leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.The secondary output of this product is 0~5(2)mA or 0~1V. There are round hole type and square hole type for users to choose according to their needs.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

AKH-0.66/L45

Model: AKH-0.66/L-45 Leakage CT

Accuracy: Class 1

Ratio: 5A/5mA

Aperture: 46mm

Rated current: 16~100A

Suitable for electricity renovation project

Technical Parameters

Dimension

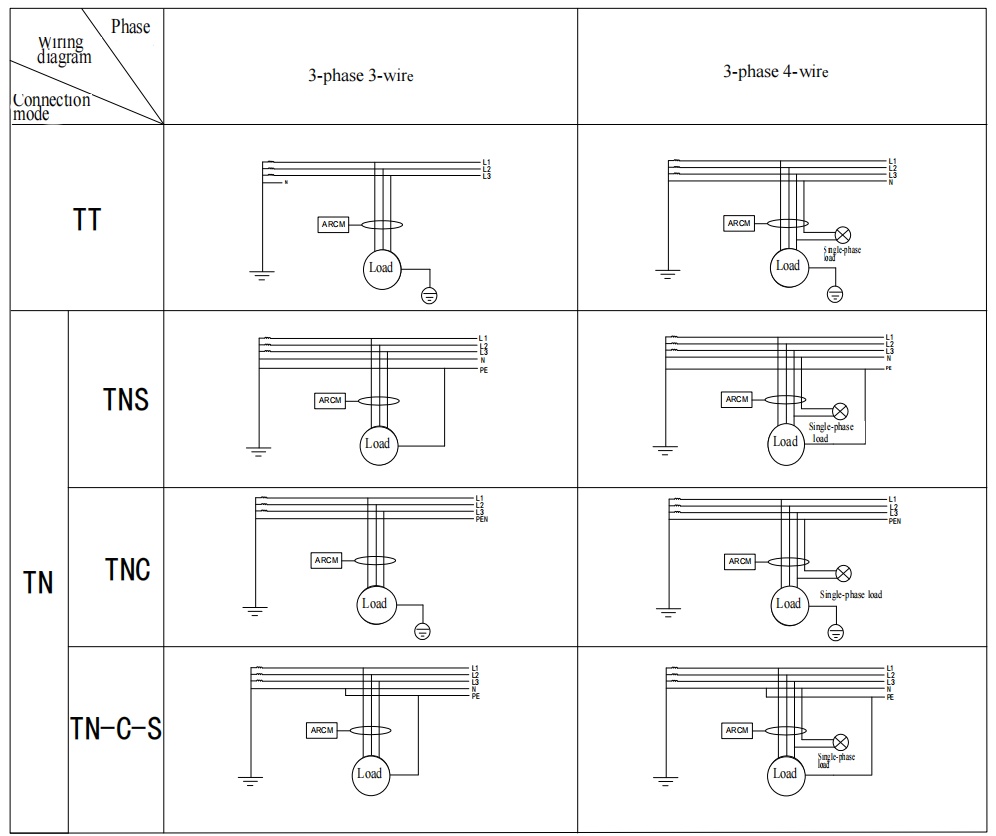

Connection Mode

Package

MINIMUM PACKAGE

MINIMUM PAKAGE

Package dimensions(1 PC)

16*12.5*7.5cm

Pakage Weight(1 PC)

0.3Kg

WHOLE BOX PAKAGE

Package dimensions(20 PCS)

45.5*26*19.5cm

Pakage Weight(20 PCS)

7kG

PRODUCT HS CODE

8504311000

ATTENTION !

The above packing and weight data are only refer to model AKH0.66-L45

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
