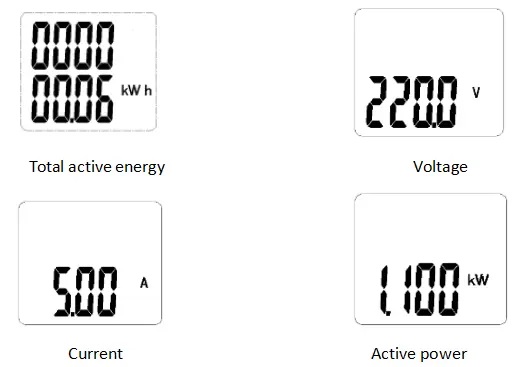

ADL100 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.
Technical Parameters
Input voltage | Rated voltage | AC 220V |
Reference frequency | 50Hz | |
Power consumption | <10VA | |
Input current | Basic current | 10A,20A |
Maximum current | 60A,100A | |
Starting current | 4‰Ib | |
Consumption | <4VA | |
Measurement performance | Accuracy of measuring | kWh Class 1 |
Range of measuring | 000000.00~999999.99kWh | |
Clock accuracy | ≤0.5s/d | |
Active pulse | Pulse width | 80±20ms |
Pulse constant | 1600imp/kWh | |
Communication | Interface | RS485(A+、B-) |
Connection mode | Shielded twisted pair conductors | |
Protocol | MOD BUS- RTU | |
Dimensions (Length × Width × Height) | 88mm×36mm×70mm | |
Temperature | Work temperature | -25℃~55℃ |
Storage Temperature | -40℃~70℃ | |
Relative humidity | ≤95%(No condensation) | |
Altitude | <2000m | |
① Brand/Model
② Panel
③ Infrared Interface
④ Pulse output light
⑤ Button
Package
MINIMUM PACKAGE |  |  |  |  |
MINIMUM PACKAGE | Package dimensions(4 PC) 170*150*130mm | Net Weight(0.034KG/PC*4) 0.136KG | ||
WHOLE BOX PACKAGE | Package dimensions(36 PCS) 480*460*200mm | Package Weight(36 PCS) 2.304KG | ||
PRODUCT HS CODE | 9028301400 | |||
ATTENTION ! The above packing and weight data are only refer to model ADL100-ET. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
