ADL100-EYNK Single Phase Prepaid Energy Meter

ADL100-EYNK single phase pre-paid meters with intro-control are used for calculating the single active energy respectively on the frequency of 50/60 Hz. The built-in magnetic of meter can keep the relay on and off .It also supports remote recharge, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

ADL100-EYNK

AC 220V

10(60)A

Prepaid mode

LCD display

Historical records

kWh Class 1

DIN 35 mm

Functions

Accuracy: kWh Class 1

Frequency
50/60HZ(Optional), Range: 45~65HZ

Auxiliary power supply(self supply):
220Vac(L-N), range:154~264V AC

Pulse output: Pulse output kWh

Consumption: <4VA(Each phase)

Installation: DIN 35mm
Dimension(L*W*H): 72*88*70mm
Active pulse:Constant: 6400imp/kWh,400imp/kWh
Clock:M ≤0.5s/d
Starting current: 0.04A

Technical parameters

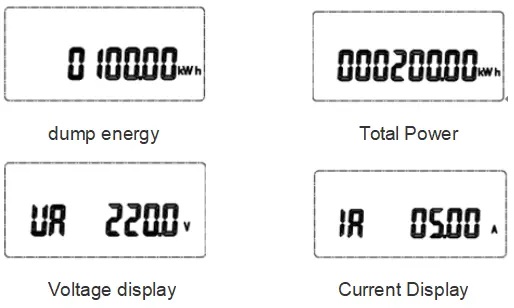

LCD Display

Operation Instruction

① Brand/Model
② Panel
③ Infrared Interface
④ Pulse Output light
⑤ Switch opening light
⑥ Button

Wiring

Network

FAQ

Q：Difference between prepayment meter and measuring meter.

A：Measuring meter focuses on diversified power data measurement, power parameter measurement and analysis, power quality measurement, etc; the prepayment table focuses on billing, alarm, control tripping, etc.

Q：Why is this generation divided into card and internal control meter？

A：The internal control meter supports remote recharge, reduces manpower, maintenance cost and improves user experience.

Q：The reason to use wireless prepayment.

A：Market development needs. Point dispersion,It is difficult to arrange the middle layer equipment or the layout cost is very high.
