ADL300-EYRF 3-Phase Prepayment Energy Meter

ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The meter has functions of RF card recharge,cooperate with circuit breaker to realize load cut-off and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

ADL300-EYRF

AC 3×220/380V

1(6)A,10(80)A

Prepaid mode

Alarm for dump energy

LCD display

Historical records

kWh Class 0.5S

DIN 35 mm

Functions

Accuracy: kWh Class 0.5s

Frequency: 50/60HZ（Optional）, Range：45~65HZ

Auxiliary power supply(self supply): 220Vac（L-N）,range:154~264Vac

Pulse output: Pulse output kWh

Consumption<4VA(Each phase)

Installation: DIN 35mm

Dimension(L*W*H)：144*88*70mm

Active pulse:
Constant: 6400imp/kWh,400imp/kWh

Clock: ≤0.5s/d

Starting current:
Connect directly:0.04A,connect via CT:0.002A

Technical parameters

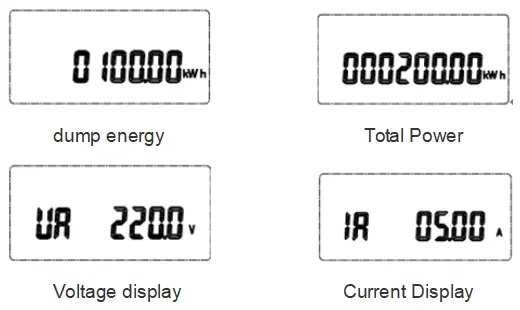

LCD Display

Front Panel

① Brand
② Infrared Interface
③ Pluse Output light
④ Switch opening light
⑤ Switch closing light
⑥ Button
