AKH-0.66/I Current Transformer

Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

AHK-0.66 Series Current Transformer manual CE-Current Transformer

AKH-0.66-I

Current transformer for measurement

Suitable for cables or busbar

Used with energy meters or relays

30I, 40I Optional Din Rail Mounted

Characteristics

● Security factor: FS＜5

● Maximum system voltage: 720V AC

●Test voltage: 3kV AC(1min)

●Standards:IEC/EN61869-1, IEC/EN61869-2

● Rated frequency: 50/60Hz

● Rated short-time thermal current: Ith=40~60In

● Rated dynamic current: Idyn=2.5Ith

● Rated secondary current: X/5A (X/1A upon request)

● Rated primary current: Ranging up to 3000A

● Continuous overload: 120%In

● Protection level: IP30

● Casing: Non-flammable, polycarbonate self-extinguishing ABS

● Environment:

Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

Parameter

Installation


Type A	Type B	Type C	Type D

Type for Din Rail

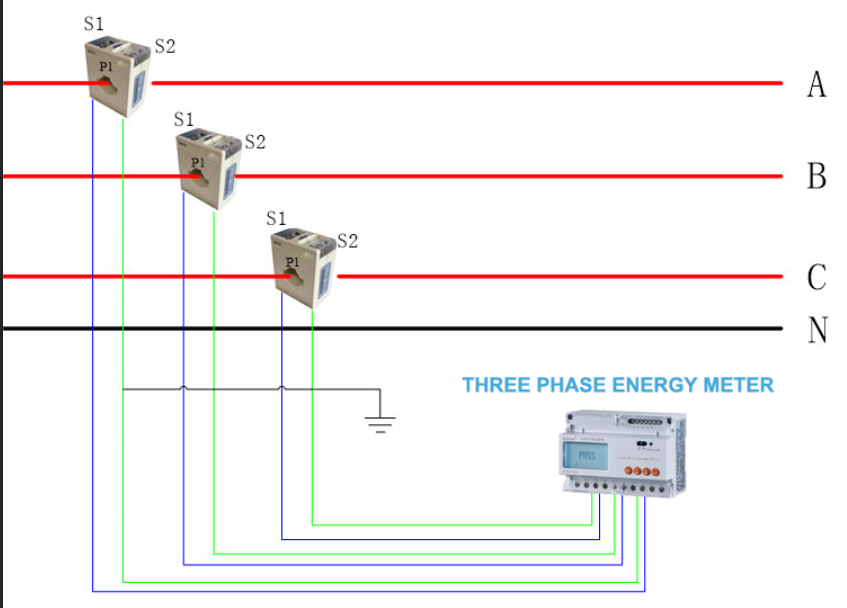

Wiring

Application


Chemical Factory	Power Station	Steel Mill	Metallurgical Factory
