AKH-0.66/Z 3-Phase Current Transformer

Combined current transformer is also called the three-phase current transformer. As current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, moulded case circuit breaker and other products.It can save installation space, reduc the cumbersome wiring, be convenient to use and effectively reduce the cost.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

AKH-0.66/Z

Combined current transformer is also called the three-phase current transformer

As current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, moulded case circuit breaker and other products.

It can save installation space, reduce the cumbersome wiring, be convenient to use and effectively reduce the cost.

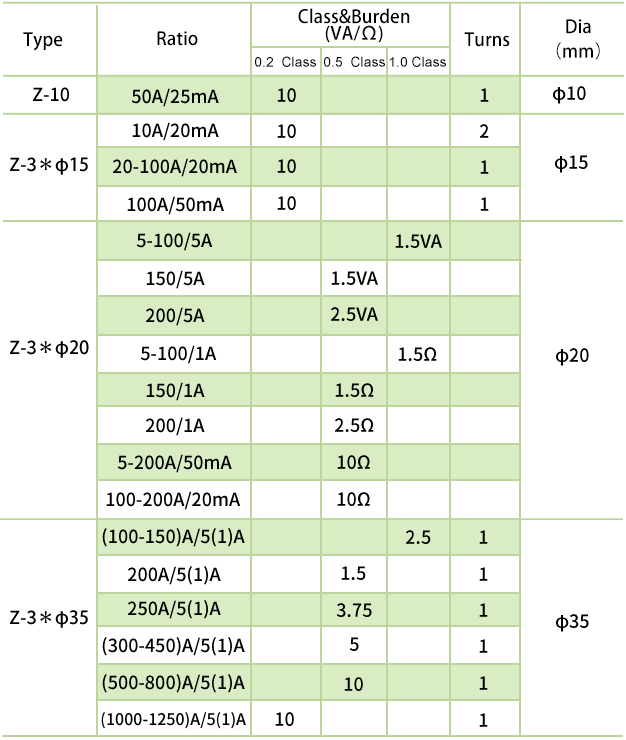

Specifications

Dimension

AKH-0.66Z-10

Z-10, diameter 10mm,

Din-rail mounting,

used with AMC16

and PZ-300.

AKH-0.66Z-3*φ15

Z-15, diameter 15mm,

mounting on the plate,

used with AMC16 and

PZ-300.

AKH-0.66Z-3*φ20

Z-20, diameter 20mm,

mounting on the plate,

used with AMC16 and

PZ-300.

AKH-0.66Z-3*φ35

Z-35, diameter 35mm,

mounting on the plate,

used with AMC16 and

PZ-300.

Wiring

Package

MINIMUM PACKAGE

MINIMUM PAKAGE

Package dimensions(1 PC)

16*12.5*7.5cm

Pakage Weight(1 PC)

0.517Kg

WHOLE BOX PAKAGE

Package dimensions(12 PCS)

45.5*26*19.5cm

Pakage Weight(12 PCS)

7.204kG

PRODUCT HS CODE

8504311000

ATTENTION !

The above packing and weight data are only refer to model AKH0.66-Z

Forz other models or optional functions, please contact the salesman for details, thank you for your cooperation!
