AMC16-DETT Multi-circuit DC Energy Meter

Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software.have the functions of telemetering,teleindication,teleadjusting, metering at real time,energy quality abnormal alarm, data storage and processing, data interaction.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

AMC16-DETT IEC-AMC16-DETT

AMC16-DETT

DC rated voltage: 1 channel: -48VDC

Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2%

RS485(MODBUS-RTU)

DIN 35 mm

Designed for base stations

Functions

Communication
Single channel RS485 communication protocol
Standard or customized

Rated U and I
Total 200A/5V

Accuracy
1%In≤I≤10%In error±2.5%;I>10%In error±2%

Voltage range
-40V~-60VDC

Power consumption
≤2W( no hall power supply output)

Power supply output
+12V/100Ma, -12V/50mA

Power consumption
≤2W( no hall power supply output)

Dimension(L*W*H)
89.7*87.8*52mm
Installation
DIN 35 mm

Clock
≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)

Current
1.2 times continued

Technical Parameters

Technical parameter		Index
Input	DC rated voltage	1 channel: -48VDC
	DC current	6 channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V
	Commercial power monitoring	1 channel: 0-5VDC
	Overload capacity	Voltage:1.2times continued,2 times continued 1s; Current: 1.2 times continued,10 times continued 1s
Accuracy (superposition hall sensors)		1%In≤I≤10%In error±2.5%; I>10%In error±2%
Measurement resolution		Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh
Functions	Basic function	Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication.
	Metering function	Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC voltage output low alarm,DC voltage output high alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm, AC input power failure alarm
	Timing function	support broadcast timing, could remote timing to the meter through RS485 communication.
	Communication	Single channel RS485, baudrate 9600bps, can be set to 1200BPS, 2400bps, 4800bps. Communication protocol: standard or custmized
	Hall sensor power supply	Power supply output:+12V/100Ma, -12V/50mA
	Clock accuracy	≤0.5S/d(23℃), ≤1S/d(-20℃-60℃),
Auxiliary supply	Voltage range	-40V~-60VDC
Auxiliary supply	Power consumption	Whole device≤2W( no hall power supply output)
Storage		It has the storage function of historical power data and historical alarm information, and the memory is 2MB
Insulation resistance		≥40MΩ
Environment	Temperature	Working : -20℃~+60℃; storage:-40℃~+70℃
	Humidity	≤98% no condensation, no corrosive gas place
	Altitude	≤4000m
Protection level		IP20
Material flame retardent		Terminal glow wire temperature 960℃±10℃ ,shell glow wire temperature 6500℃±15℃
Installation		Standard 35mm din rail
Lightning protection	Voltage input (differential mode)	Peak value 5kA
Lightning protection	Auxiliary supply (differential mode)	Peak value 5kA

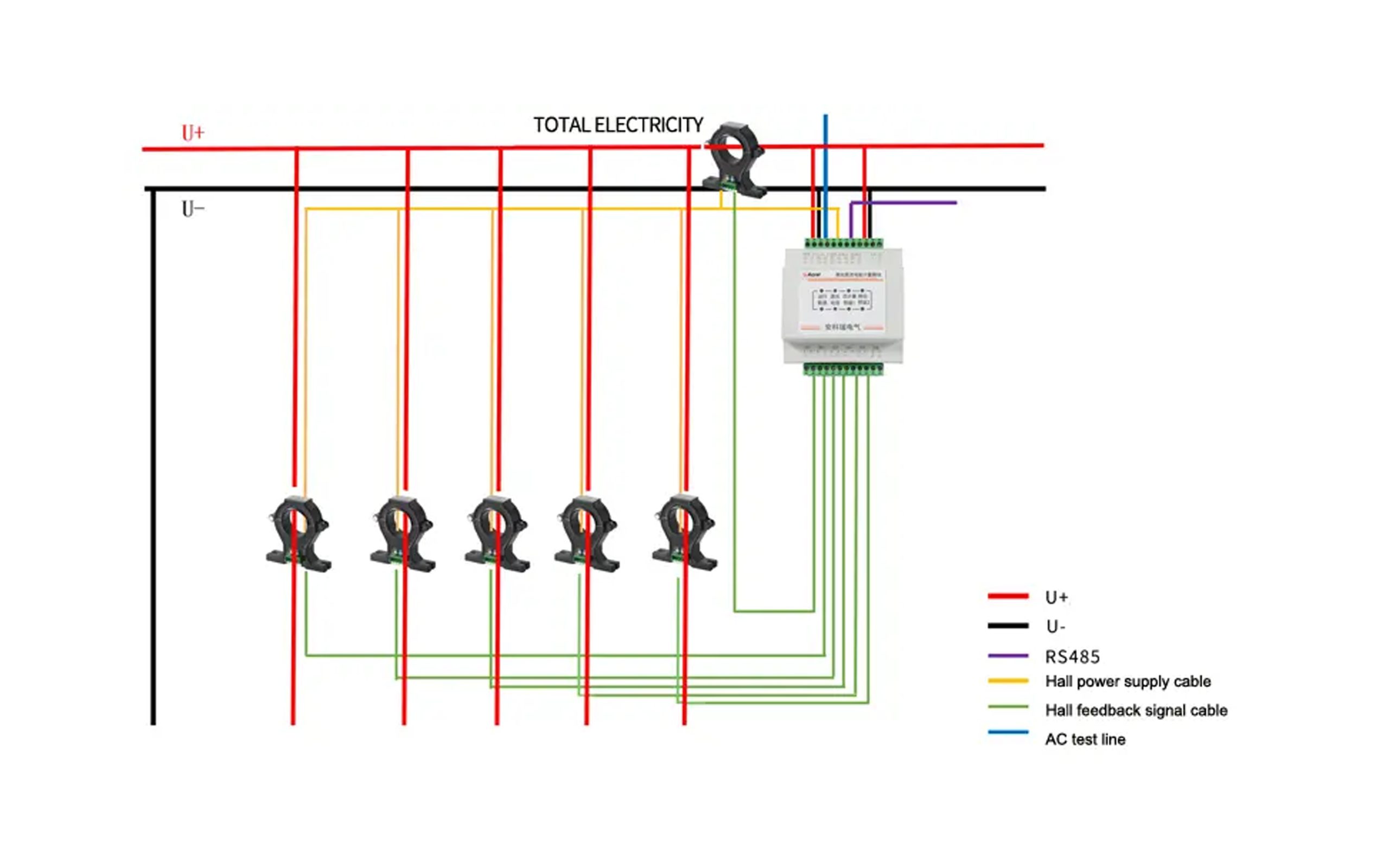

Wiring

① Digital input

② Brand/Model

③ Panel

④ Digital output

⑤ Pluse output

FAQ

Q：The measurement of the metering module is inaccurate.

A：Check input whether the polarity and direction of the input voltage and current wiring are correct;Whether the direction of the primary current of the Hall sensor is correct; Whether the output signal of the Hall sensor matches the input signal required by the module; Check whether the output negative pole of the voltage output Hall sensor is connected to the module GND.

Q：Communication is abnormal.

A：Check communication whether the communication cable is normal; check whether the communication terminals A and B are staggered; check whether the address of the module is set correctly and whether the communication baud rate is set correctly; if the communication of multiple modules is not normal, first try whether the single-machine communication is normal.

Q：The metering module cannot bedisplayed normally.

A：Check whether it is caused by insufficient load capacity due to the built-in power supply to the hall sensor. Change the external switching power supply to power the hall.
