AMC series meters adopt AC sampling technology, which can measure the current ,voltage,power, power factor and electric energy parameters in the power grid separately. It can set the magnification through the panel membrane switch. The meters have RS485 communication interface, adopt Modbus protocol; also can convert the power signal into a standard DC analog signal.
Communication
RS485(Modbus-RTU)
Display
LCD display, set multiplying power
Rated I
AC current: AC1A, 5A
Accuracy
Active energy: Class 0.5
Installation
Panel mounted

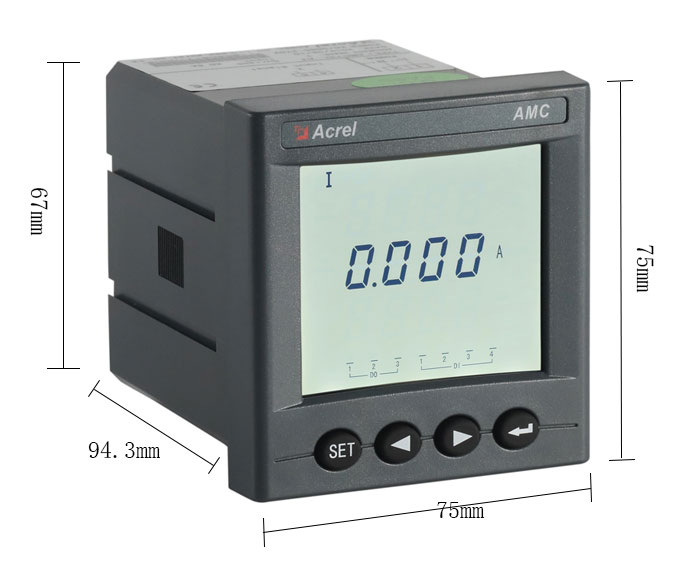

Dimension(L*W*H)
Panel size (L×W): 75*75mm
Cutout(L×W): 67*67mm
Depth (H): 94.3mm
Consumption
Current: Power consumption< 0.5VA;
Auxiliary power supply: power consumption≤5VA
Auxiliary power supply
AC 220V
