AMC series AC voltmeter, adopting AC sampling technology, can directly measure voltage of three phase grid. It can be used for local display, and connecting industrial control device to form measuring control system.
Communication
RS485(Modbus-RTU)
Display
LCD display, set multiplying power
Rated U & I
Three phaseAC 100V,400V,660V(UL-L,Only 72/ 96)
Accuracy
Active energy: Class 0.5
Installation
Panel mounted

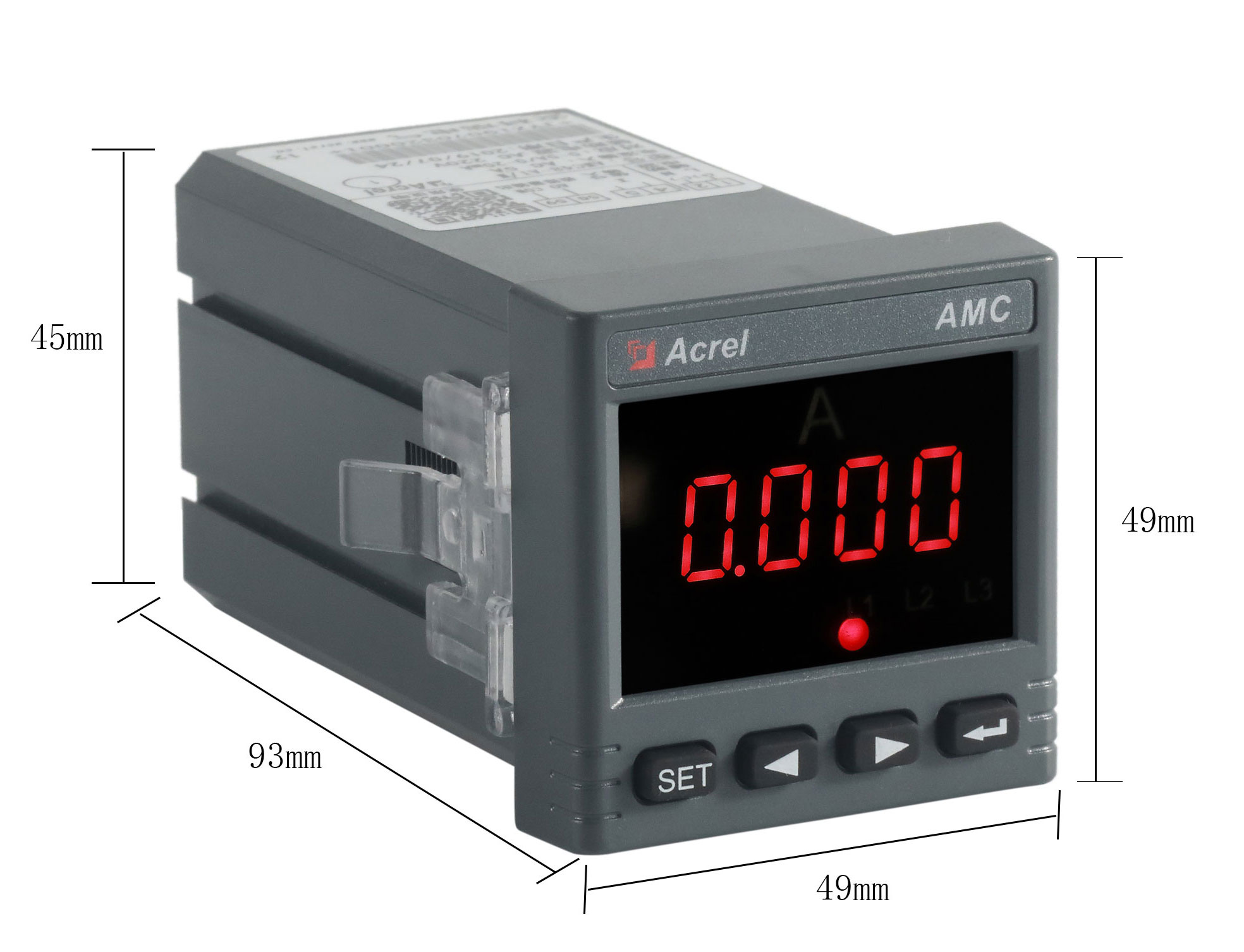

Dimension(L*W*H)
Panel size (L×W): 48*48mm
Cutout(L×W): 45*45mm
Depth (H): 93mm
Consumption
Current: Power consumption< 0.5VA;
Auxiliary power supply: power consumption≤5VA
Auxiliary power supply
AC 220V
FAQ
Q: No display on power?
A: Check whether the supply voltage is within the operating voltage range.
Q: Incorrect reading of voltage,current,electricty,etc?
A: Checking that the voltage/current ratio setting are correct;
Checking whether the wiring mode setting is consistent with the actual situation;
Checking whether the voltage transformer and current transformer are in good condition.
Q: Abnormal communication?
A: Check whether the adress,baud rate,check bits in the communication;
Setting are consistent with the host computer;
Check whether the RS485 converter is normal;
Check the connection is corrent if the resistor above 120 ohm is connected in parallel at the communication end.
