| Shape | |||
| Interface | RS485: AI/DI/DO RS485: wiring AI/DI/DO: wiring terminal | ||

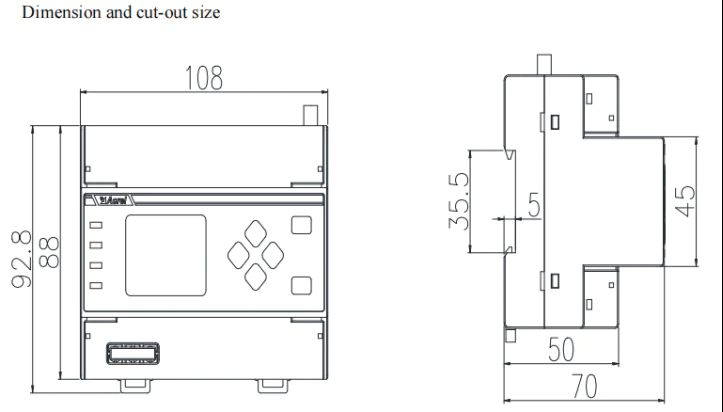

| Size | 6-mold(108mmX88mmX70mm)din-rail,flame retardant ABS material | ||
| Performance | |||
| Processor | M4 Kernel | ||
| Frequency | 168MHZ | ||
| Storage | 8G TF Card | ||
| Communication Interface | |||
| Ethernet | 10M/100M*1, Electrical Isolation | ||
| Serial Port | RS485*(4/8): 485A、485B、GND, Electrical Isolation | ||
| Serial Port Parameter | |||
| Baud Rate | 1200~115200bps | Check Bit | None, Odd, Even |
| Data Bit | 7-8 位Bits | Flow Control | No Flow Control |
| Software | |||
| IP Mode | IPV4、IPV6 | ||
| Protocol | TCP、UDP、HTTP、DHCP | ||
| Configuration Mode | Windows Desktop Software,WEB Browser,Remote Debugging | ||
| Communication Mode | TCP/IP direct communication、RS485、LORA | ||
| Protocol | Modbus RTU、Modbus TCP、MQTT | ||
| Firmware upgrade | Windows Desktop Software,WEB Browser,Serial port upgrade | ||
| Working mode | |||
| TCP server,TCP client,UDP server,UDP client | |||
| Power Requirements | |||
| Power Supply | DC 12-24V(Power Adapter) | ||
| Environment | |||
| Operating Temperature | -20℃~+55℃ | ||
| Storage Temperature | -40℃~+85℃ | ||
| Humidity Range | <95%RH,No Condensation | ||

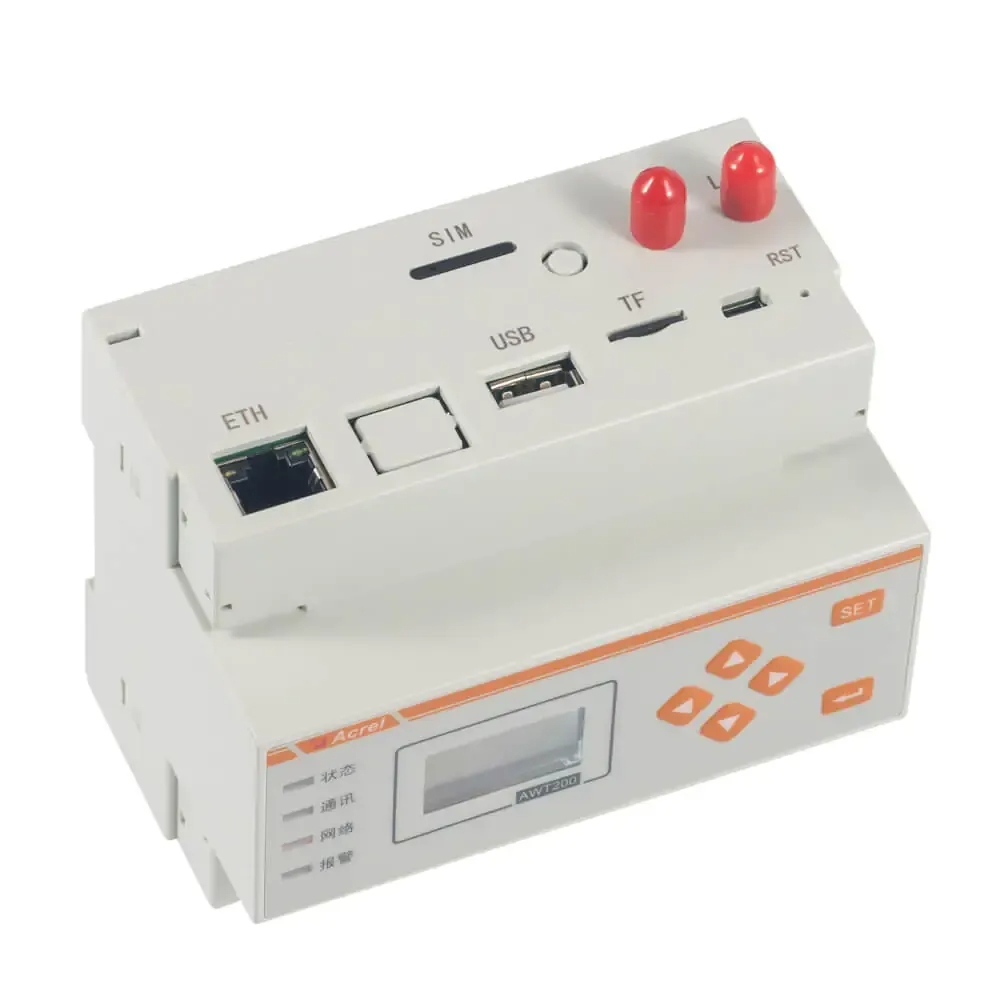

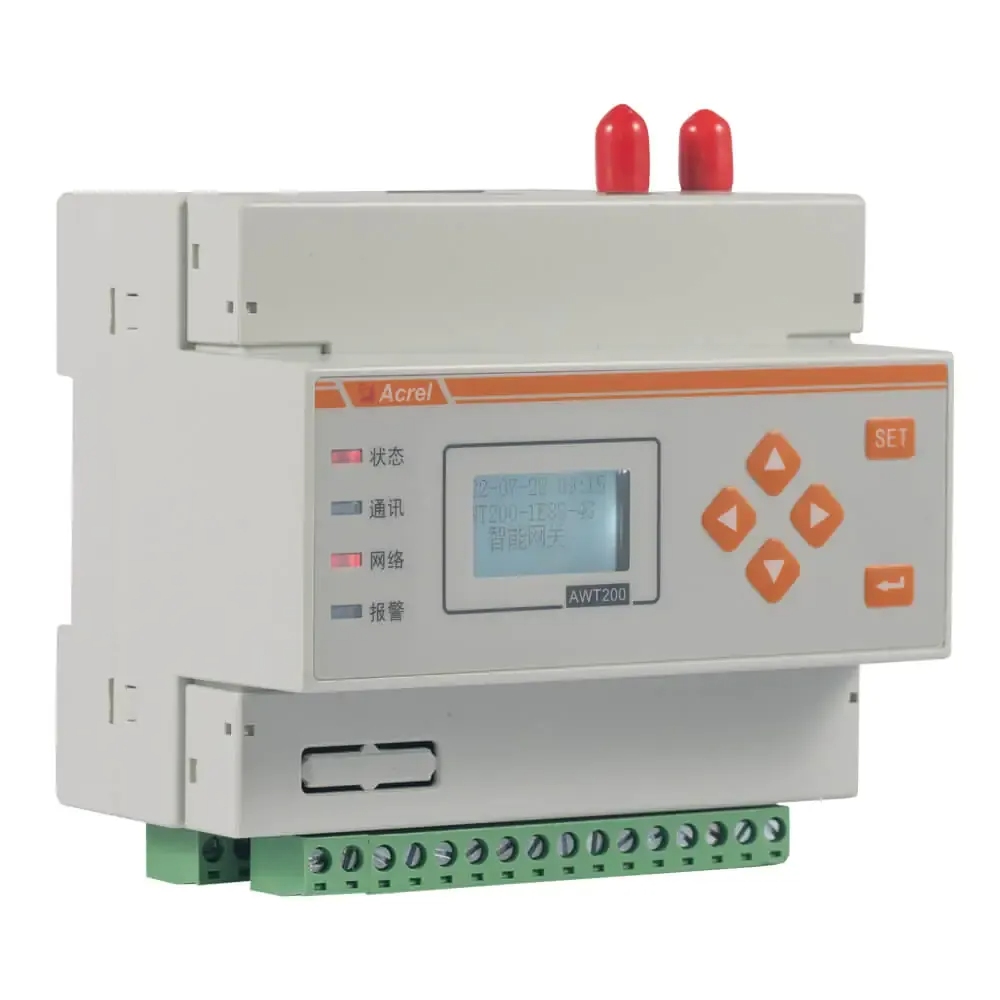

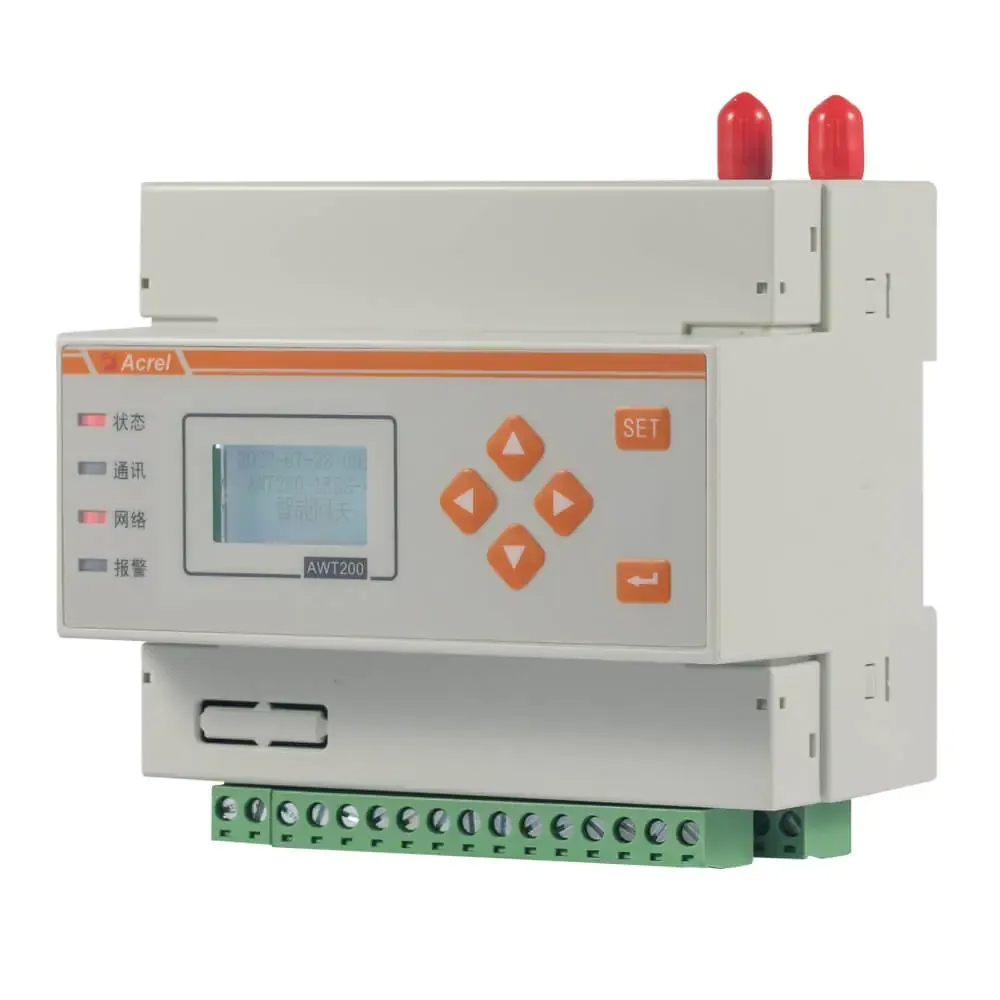

AWT200 Smart IoT Gateway
● Support on-site debugging free, adaptive meter reading
● The maximum support for centralized collection of 10,000 points
● Large capacity storage, support resumable breakpoint
● Supporting management tools, convenient system configuration and maintenance
● Strong communication ability, up to support 8 serial ports, LoRa, Ethernet, 4G, WIFI
● With switch quantity and analog quantity input
● 1.2 inch dot-matrix display screen and buttons
● Support a variety of mainstream IoT communication protocols
● Support data logical operation and processing
