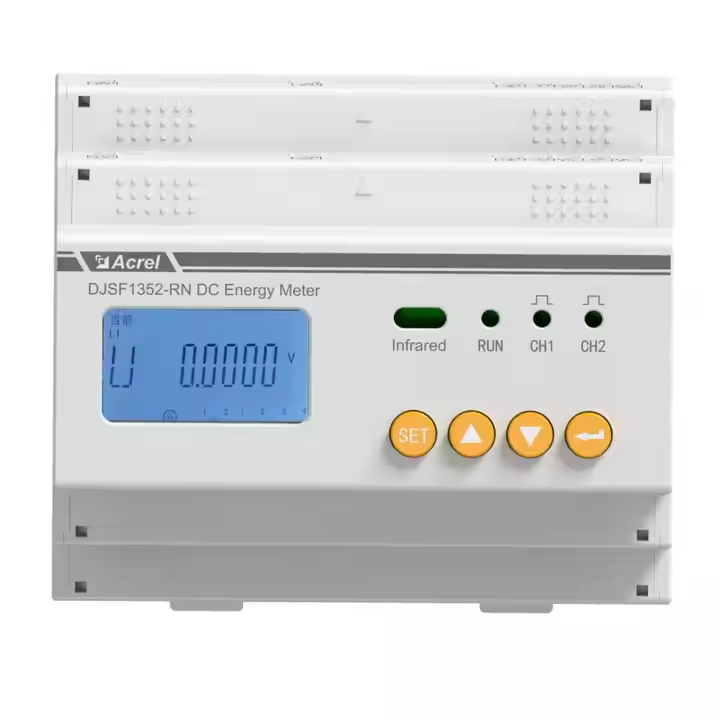

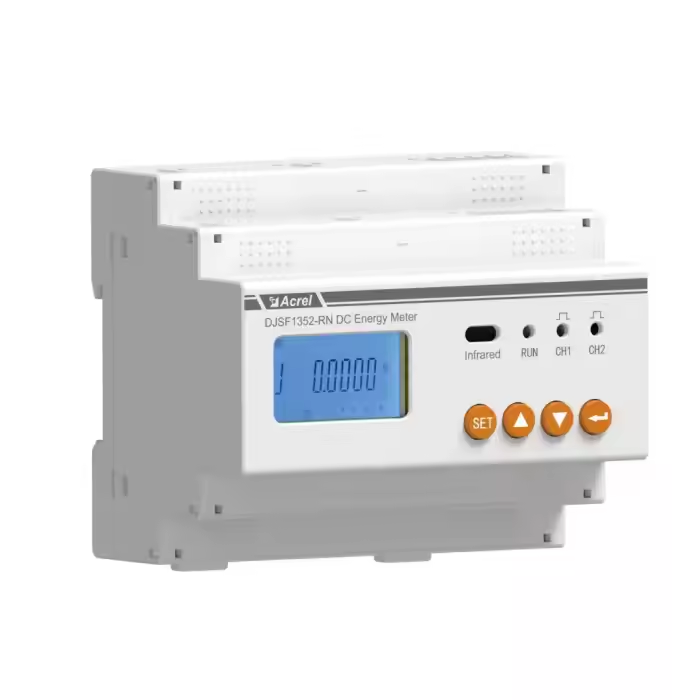

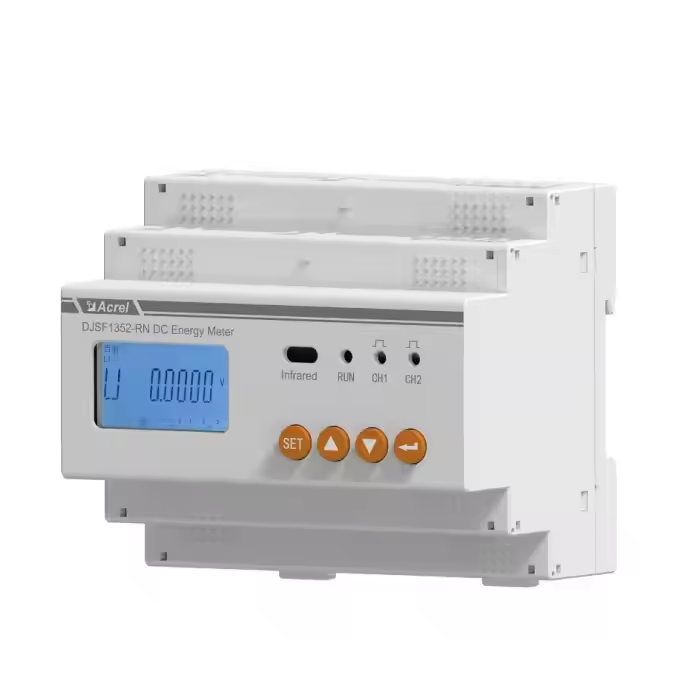

DJSF1352-RN-6 1500V Din Rail DC Energy Meter

● Accuracy class: Class 0.5
● Voltage input: DC 0-100V、DC 0-1500V
● Current input: Shunt: 0-75mV Hall sensor: 0-5V, 0-200mA
● Communication: RS485（two options）
● Communication protocol: Modbus-RTU，DL/T 645-2007，DLT698
● Power Supply: AC/DC 85-265V or DC 12V-48V

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

General

DJSF1352-RN din-rail DC energy meter with dual DC input, mainly designed for telecom base stations, DC charging pile, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and positive and negative energy in the DC system. The test results can not only be used for local display, but also can be connected with industrial control equipment and computers to form a measurement and control system.

Dimension

Function

● Display: 8-bit segment LCD screen (LCD)

● Communication Interface: RS485（two options）

● Communication protocol: Modbus-RTU，DL/T 645-2007，DLT698

● Switch output (DO): 2 relay outputs, 2A/30VDC or 2A/250VAC

Switch input (DI): 2 dry contact inputs
Analog output (AO): 4-20mA output (0.5 level)
Pulse output: Two-way power pulse output (the second power pulse can be switched to second pulse)
Power supply: AC/DC 85-265V or DC 12V-48V
Working temperature: -25℃～+65℃

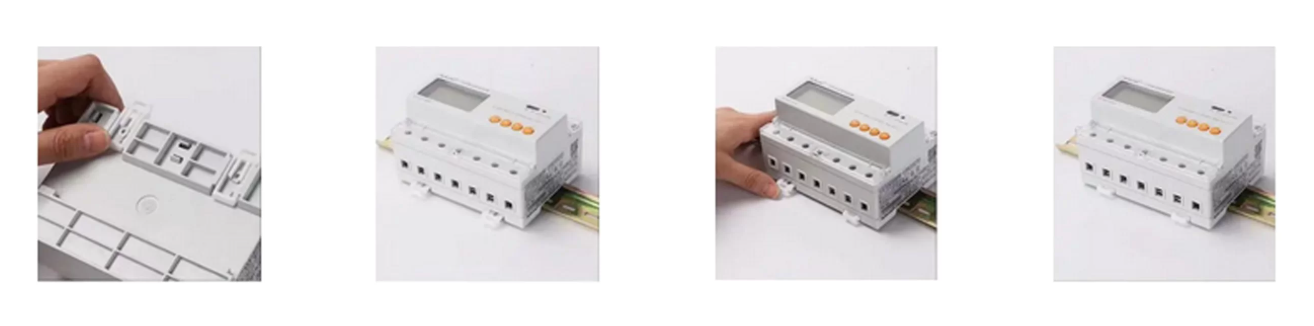

Installation
