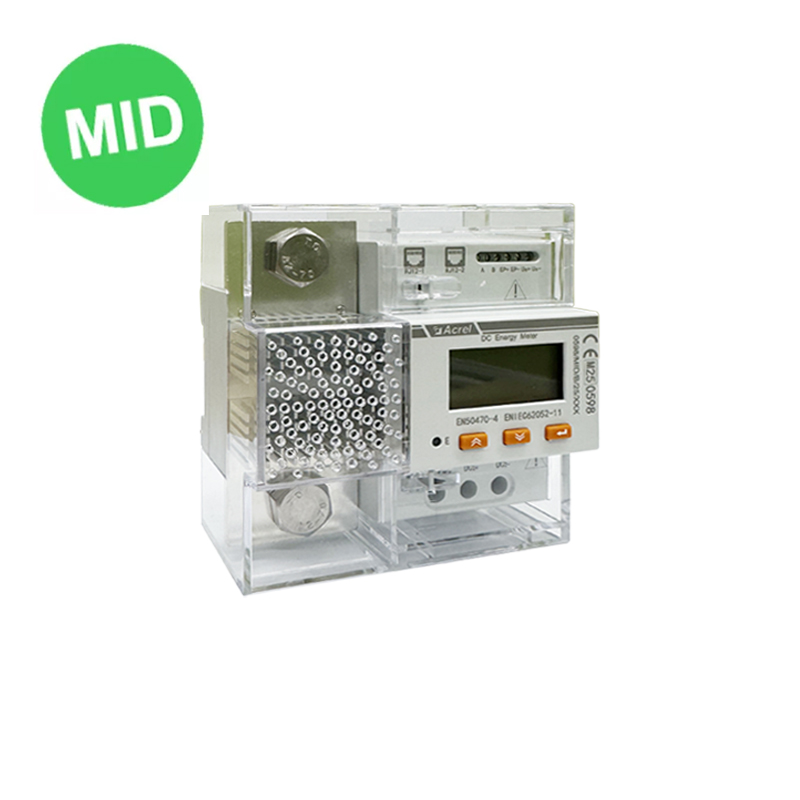

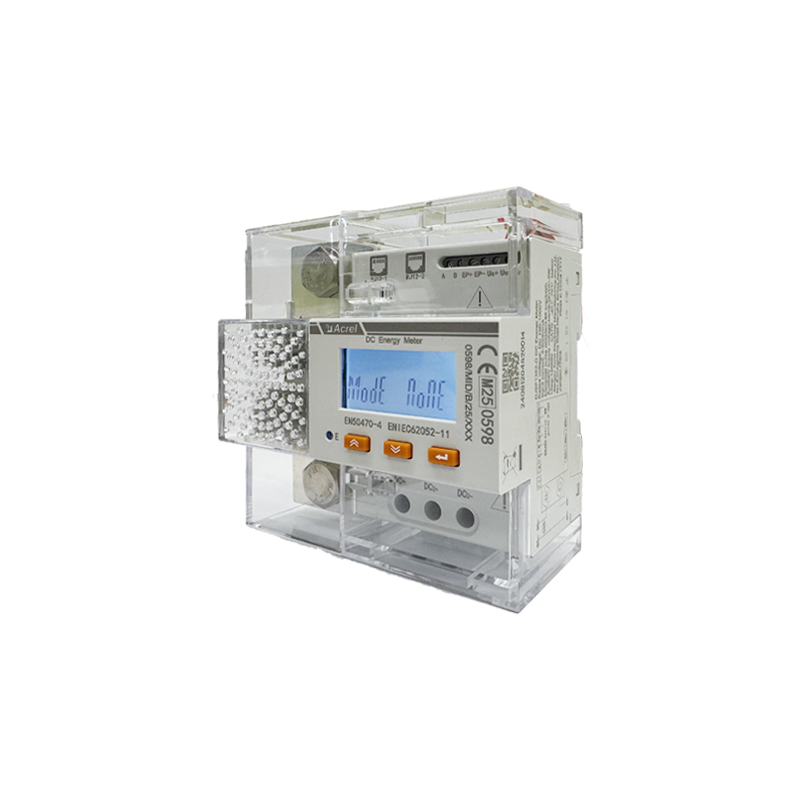

Acrel DJSF1352-D DC Energy Meter with MID Certificate

●2 Channels RS485 communication terminal
●Supports Modbus-RTU protocol
●Current connected directly, 300A or 600A
●A second pulse output, a energy pulse output
●CE & MID Certificate

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

General

Acrel DJSF1352-D rail-mounted DC power meter which have CE and MID certificate designed for DC charging piles, this series of DC energy meters can measure the

voltage, current, power and energy and so on.

Characteristic

Communication

Display

Rated U and I

2 Channel RS485 (Modbus-RTU)

RJ12 Port

LCD display

Voltage: DC 0-1000V

Current:300A & 600A

Function

Accuracy

Class B

Frequency

Pulse output

A second pulse output, a energy pulse output

Communication

Modbus-RTU，DL/T 645-2007，DLT698

Installation:

DIN 35mm

Dimension(L*W*H):

115*105*65 mm

Work temperature:

-40℃～+70℃

Switch relay:

DC 30V/3A AC 220V/3A

Installtion

Solution

1.Solution for Charging Pile Energy Management System

FAQ

Q：DJSF1352-D Installation？

A：DJSF1352-D use 35mm din rail which is convenient and quick to install.

Q：What is the current specification??

A：300A or 600A.

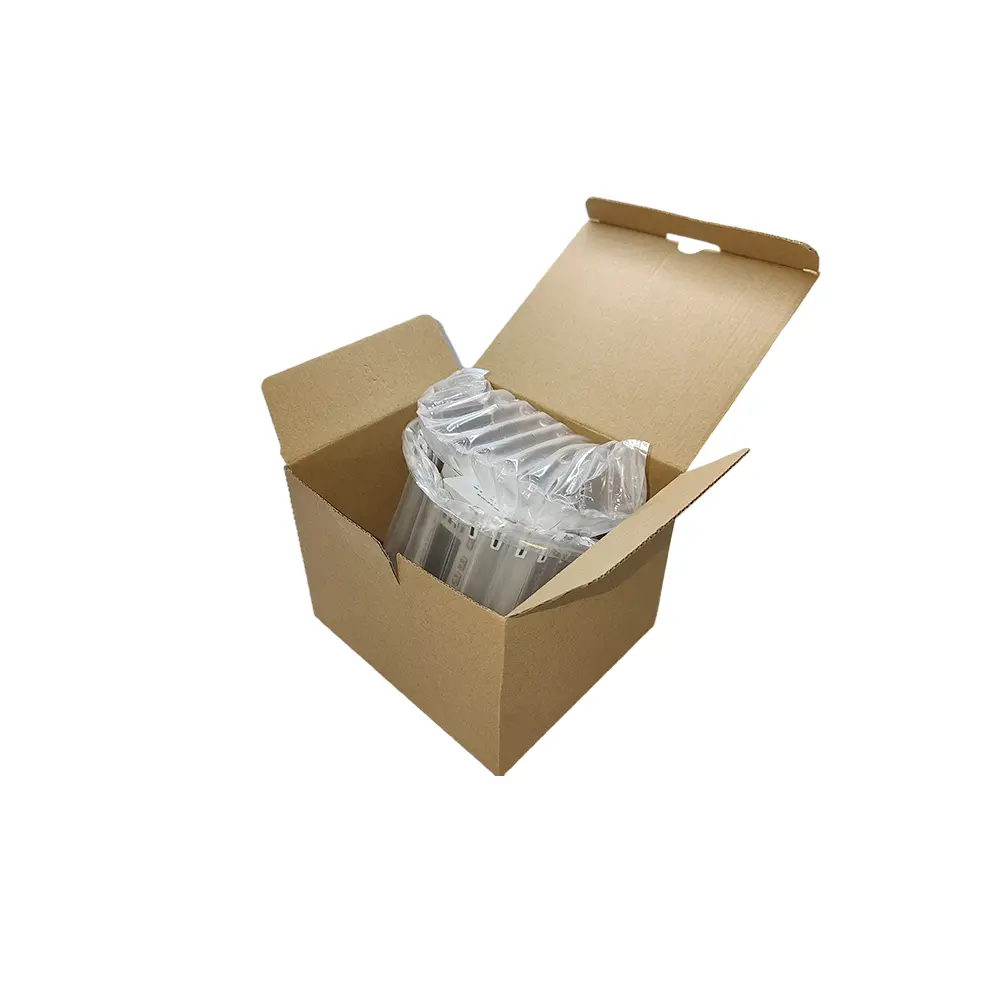

Package

MINIMUM PACKAGE
MINIMUM PACKAGE	Package Dimension(1 PC) 170150130mm	Package Weight(1 PC) 0.165Kg
WHOLE BOX PACKAGE	Package Dimension(36 PCS) 540530480mm	Package Weight(36 PCS) 8.2kG
PRODUCT HS CODE	9028309000
