APM510 Power Quality Monitoring Meter

APM5 series network power meter (hereinafter referred to as the meter) is designed according to IEC international standards, with full power measurement, power statistics, power quality analysis (including harmonics, interharmonics, flicker), fault recording function (including voltage temporary rise and fall interrupt, inrush current and other records), event recording function and network communication and other functions. It is mainly used for comprehensive monitoring of power supply quality in the power grid.

  • Fast And Safe Logistics
  • Sample Available


    • Full Power Measurement
    • Power Quality Analysis
    • Leakage Current Measurement (Optional)
    • Support Modbus-RTU/TCP Protocol
    • Accuracy: 0.5s


Voltage、current and power: Class 0.2
Active power: Class 0.5; Reactive power: Class 1

Pulse Output

Output mode: photocoupler pulse with open collector;
Pulse constant: 10000imp/kWh (default)

Voltage、current: Power consumption: <0.5VA;
Auxiliary power supply: Power consumption ≤15VA

Starting Current: 0.1%

Installation: Panel mounted

Frequency: Range: 45-65Hz

Relay: 3A/AC250V, 3A/DC30V

Dimension (L*W*H)
Panel size (L×W): 75*75mm
Cut-out size (L×W): 67*67mm

Auxiliary Power Supply
AC/DC 85V~265V or AC/DC 115~415V

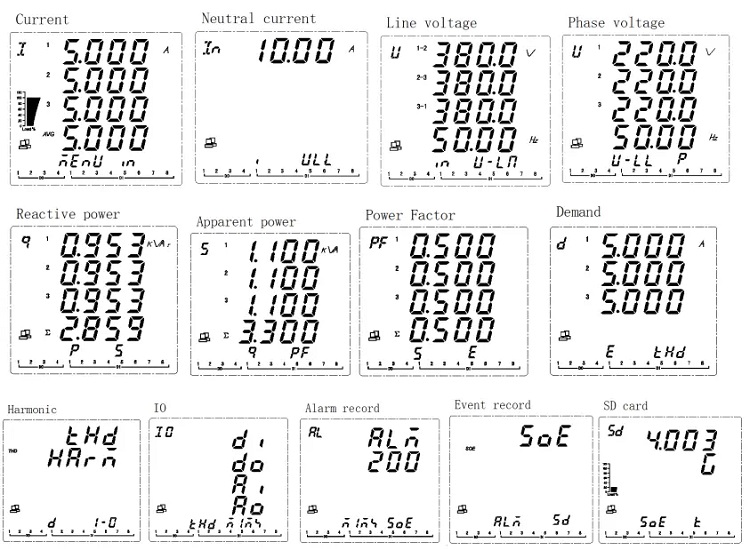

Front Panel

① Type of Parameters
② Load Value
③ Total Power
④ DO Status Indicator
⑤ Menu
⑥ Key Down
⑦ Data Display
⑧ Navbar
⑨ DI Status Indicator
⑩ Enter Button
⑪ Key up






Q: What’s the storage capacity, storage format and data storage interval of SD card?

A: The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)

Q: How should I select the expanded modules of APM5xx?

A: Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random

Q: The features of APM5xx?

A: Except for wave record and flicker record function, 0.2S measuring accuracy can also be a option. Also, users can measure the data through browser by using Ethernet auto WEB.

Q: As for the auxiliary power supply of APM5xx?

A: AC/DC 85~265V or 115~415V is both optional. Also, 380V  line voltage can also serve as power supply.
