ATE

Wireless transmit,470MHz;

Wireless transmission distance, 150 meters in open area;

Power Supply: Battery or CT Sensing Power;

Widely temperature measuring range, -50℃~+125℃;

Application: Switchgear, Busbar, Bus duct, Electric contact, Cable joint, Rain main unit and etc.

Appearance


ATE100	ATE100M	ATE200P

ATE100P	ATE200P	ATE400

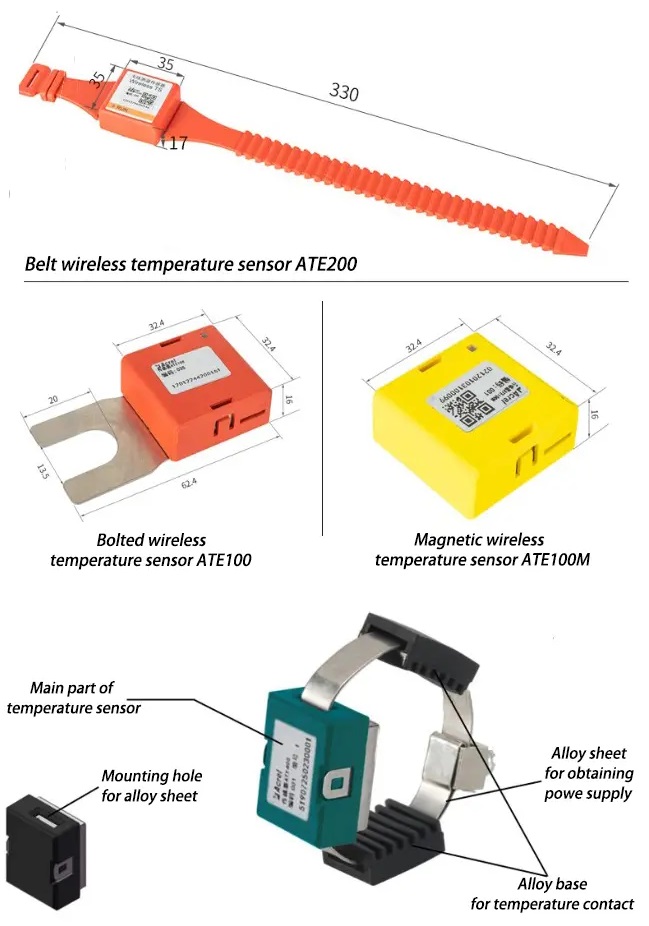

Dimension

Features

Practical Application & Installation

Typical Connection

FAQ

Q: Battery sensors don't display temperature.

A: Possible Reasons:

A.The sensor's power switch is not turned on;

B.The sensor and transceiver are not matched;

C.Turn on the sensor first, and then power on the transceiver, wait about 15MIN. The distance between the sensor and the transceiver is far.

Q: Passive sensors don't display temperature.

A: Possible Reasons:

A.Installing layers of sensor's alloy plates are not enough, at least 3 layers;

B.The sensor and transceiver are not matched;

C.The starting current when the sensor is installed is less than 5A;

D.The distance between the sensor and the transceiver is far.

Package

MINIMUM PACKAGE

MINIMUM PACKAGE

Package dimensions(3 PC)

170*150*130mm

Package Weight(3 PC)

0.47Kg

WHOLE BOX PACKAGE

Package dimensions(108 PCS)

450*240*250mm

Package Weight(108 PCS)

19.92kG

PRODUCT HS CODE

9025191010

ATTENTION !

The above packing and weight data are only refer to model ATE100.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
