BA50L-AI/I AC leakage Current Sensor

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

BA Current Transducer

BA50L-AI/I

Input: 0-1A leakage current

Output: DC 4-20mA or DC 0-5V

Measurement of leakage current

Overload: 1.2 times of rated value

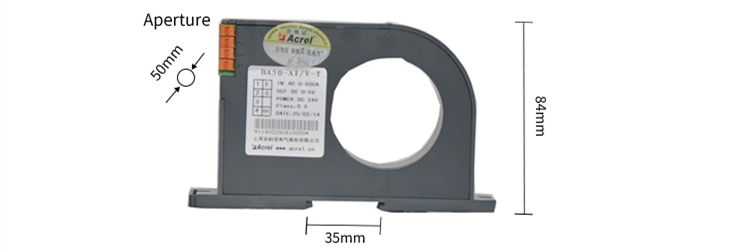

Dimensions

Parameters

Wiring

1 —— + Positive power supply (not reversed)
2 —— - Power EARTH
3 —— G（Current output negative, which can be shared with the power supply）
4 —— IDC(Current output positive)，VDC(Voltage output positive)

Installation

Screw fixed installation

On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

Din Rail installation

Choose a suitable place to install the standard DIN35mm rail,

and install the BA sensor on the rail

Application


Cement Building	Petrochemical Industry	Iron and Steel Metallurgy	Rail Traffic

Package

MINIMUM PACKAGE

Package dimensions(1 PC)

16*12.5*7.5cm

Package Weight(1 PC)

0.23Kg

WHOLE BOX PACKAGE

Package dimensions(25 PCS)

45.5*26*19.5cm

Package Weight(25 PCS)

6.75kG

PRODUCT HS CODE

9030339000

ATTENTION !

The above packing and weight data are only refer to model BA50L-AI/I.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
