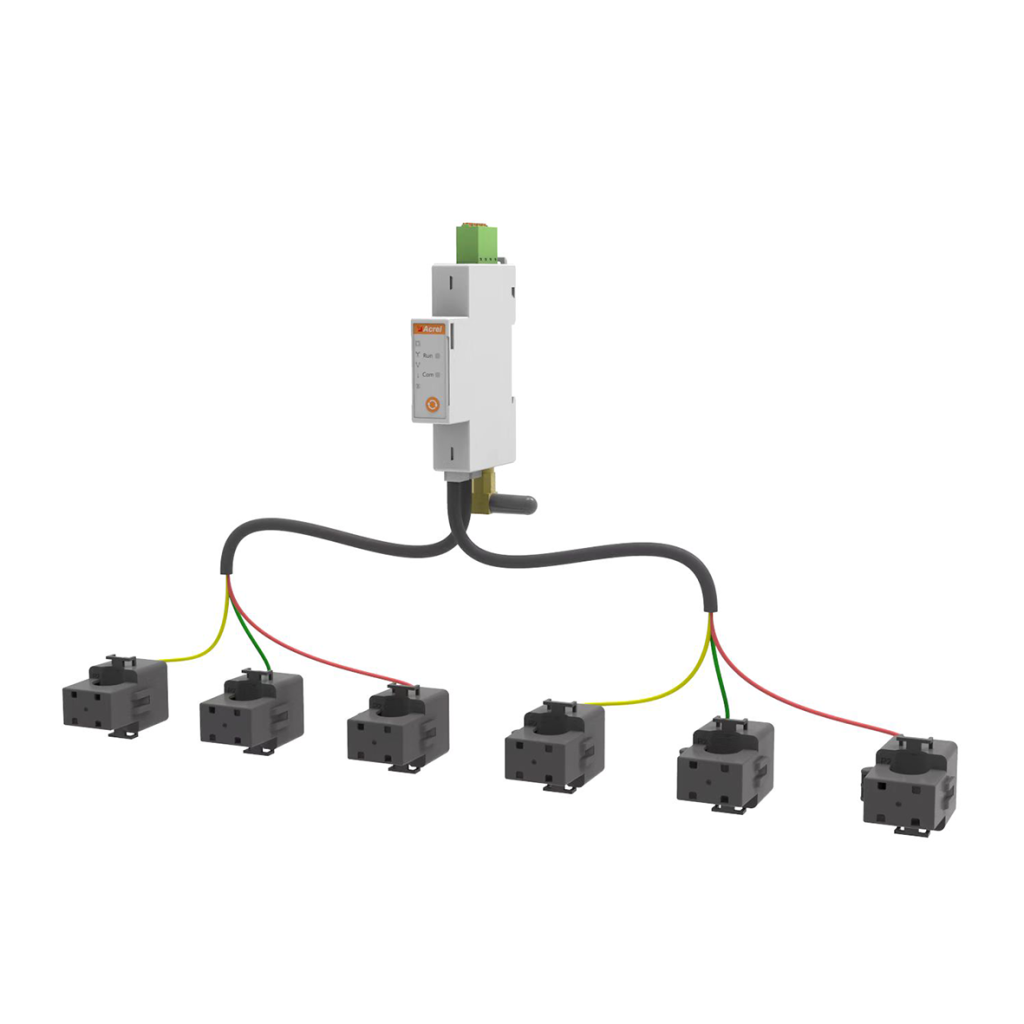

ADL400W-CT 3 Phase Multifunctional and Dual Circuits Energy Meter with External CT

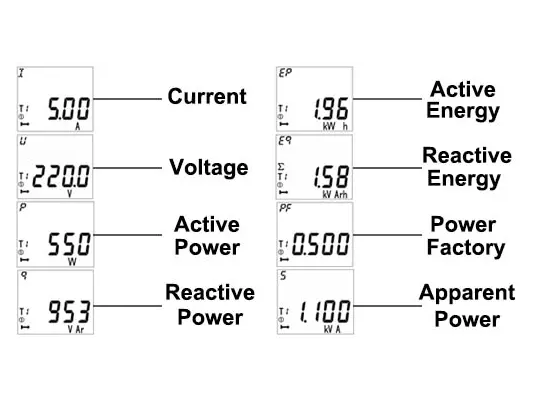

● Measurement: 3-phase dual-channel bi-directional AC Energy (kWh), Power, Current, Voltage and etc
● Response Rate: 50ms (current, voltage, power)
● Rated Voltage: 3×230/400V(direct connect)
● Rated Current: 120A AC (via paired CT)

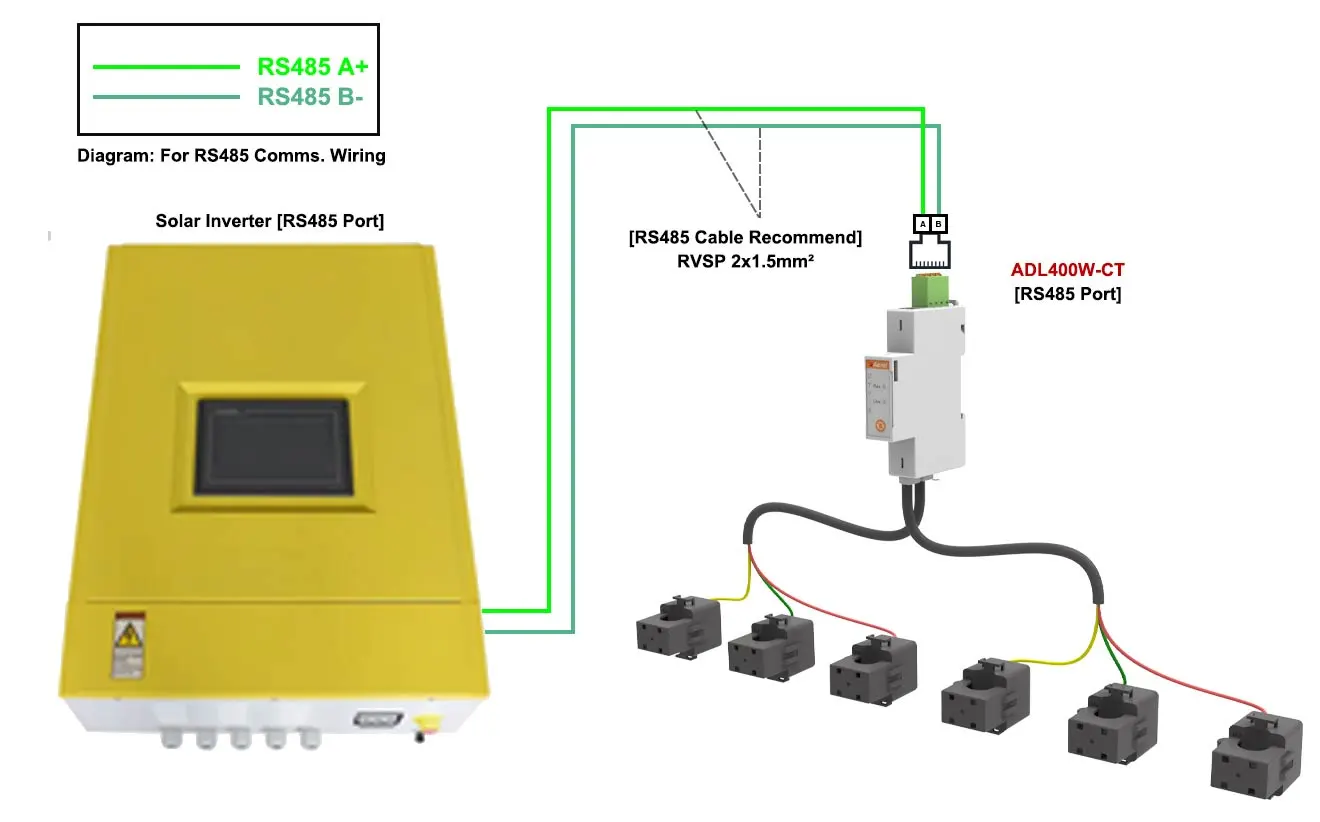

● Communication: WiFI & LoRa (MODBUS) ; RS485 (MODBUS-RTU)

GET A QUOTE CONTACT US

Fast And Safe Logistics
Sample Available

General

ADL200W ADL400W Series DIN-Rail Mounted Multifunctional and Dual Circuits Electric Energy Meter With External Current Transformer is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc. The product has the advantages of high precision, small volume, high respondent speed and convenient installation.

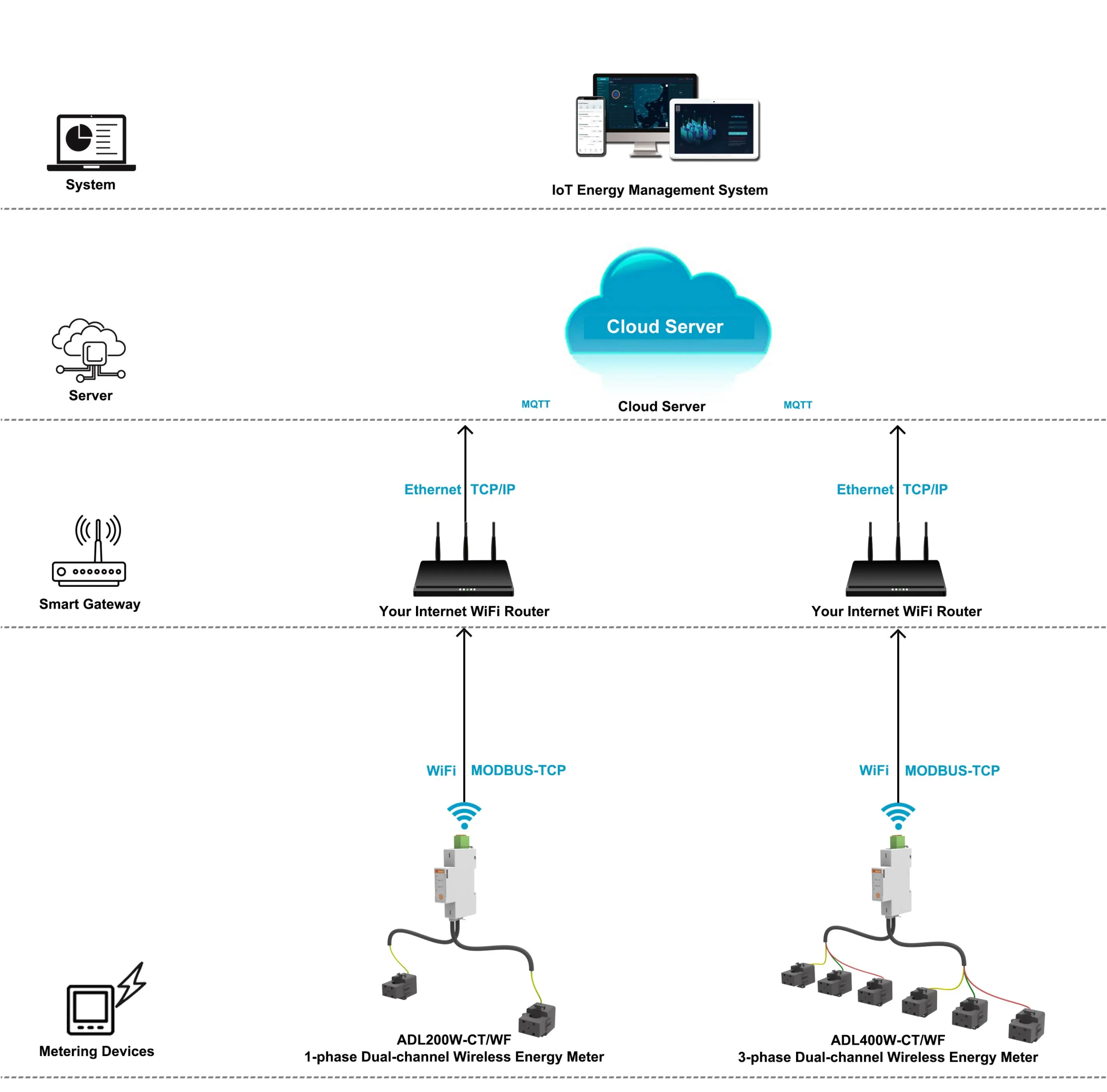

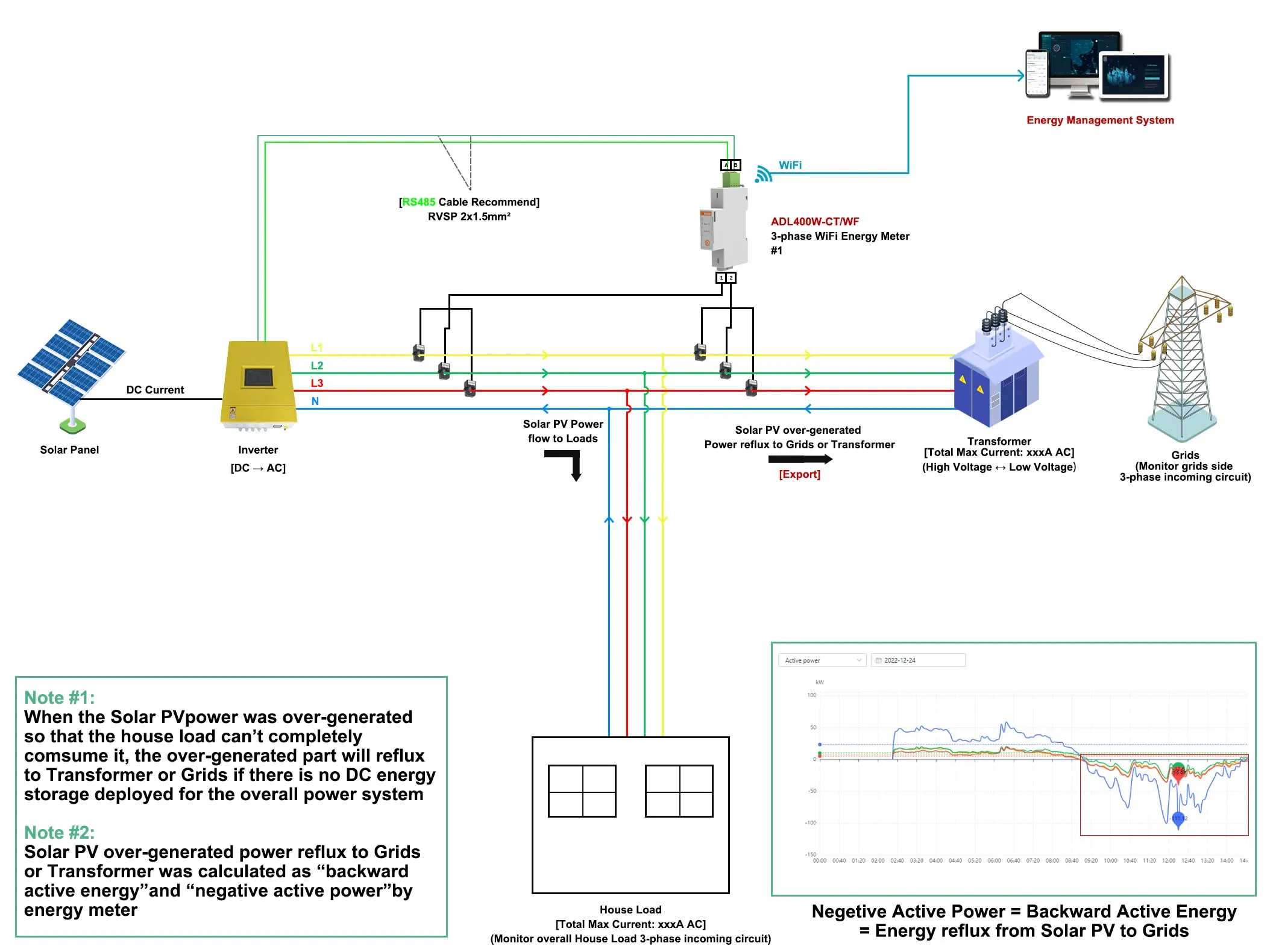

It can monitor and measure real-time power and other power parameters, support protocols such as Modbus-TCP and http, and communicate with inverters or energy management systems (EMS) via Wi-Fi or Lora communication to achieve functions such as anti-reverse flow, regulating power generation, and battery charging and discharging. It can be bidirectionally measured to achieve energy management for household distributed photovoltaic systems.
